Husqvarna R213 C - 94cm Cutting Deck 2

Name: Husqvarna R213 C - 94cm Cutting Deck 2
SKU: r213_c_94cm_cutting_deck_2-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R213 C

Model Year -

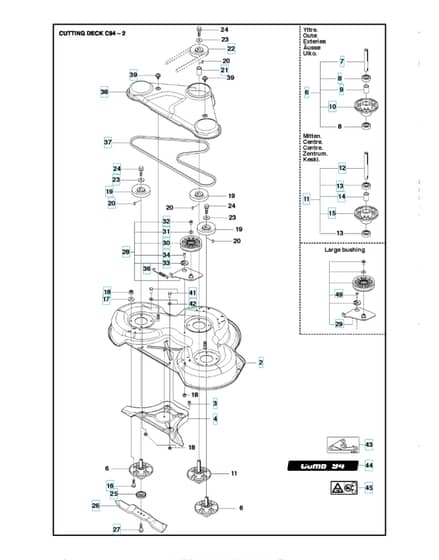

94cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV581 23 74-07 Available to backorder	Deck Shell Assy	£534.00 £445.00
3	HV506 91 62-01 Available to backorder	Nut	£6.08 £5.07
4	HV544 06 58-01 Available to backorder	Plug	£91.76 £76.47
6	HV576 38 41-02 In stock	Blade Housing Assy	£134.88 £112.40
7	HV576 38 43-02 Available to backorder	Shaft	£33.12 £27.60
11	HV576 38 41-03 Available to backorder	Blade Housing Assy	£149.12 £124.27
13	HV738 23 04-34 Available to backorder	Ball Bearing	£9.96 £8.30
14	HV576 38 44-01 Available to backorder	Spacing Sleeve	£11.64 £9.70
15	HV576 38 42-01 Available to backorder	Bearing Housing	£76.60 £63.83
16	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.04 £4.20
18	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
19	HV506 92 21-01 Available to backorder	Pulley	£37.42 £31.18
20	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
21	HV544 06 80-03 Available to backorder	Spacing Sleeve	£14.88 £12.40
22	HV506 77 86-01 Available to backorder	Pulley	£82.51 £68.76
23	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
25	HV544 06 49-01 In stock	Blade Holder	£10.73 £8.94
26	HV579 65 25-10 In stock	Blade	£38.34 £31.95
27	HV506 67 54-02 Available to backorder	Screw Ehhfm	£7.57 £6.31
28	HV580 79 41-01 Available to backorder	Belt Tensioner Assy	£39.38 £32.82
29	HV506 79 71-01 Available to backorder	Spännarm Kpl.For 967291002. 967291001. 967150401. 966756901	£21.36 £17.80
31	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
32	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.62 £3.02
33	HV505 45 17-01 In stock	Washer	£16.00 £13.33
34	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
36	HV506 53 31-01 Available to backorder	Spring	£12.04 £10.03
37	HV589 53 07-01 In stock	Belt	£52.44 £43.70
38	HV522 82 19-03 Available to backorder	Belt Cover	£64.04 £53.37
39	HV544 40 05-01 Available to backorder	Screw	£2.80 £2.33
42	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
43	HV506 78 97-01 Available to backorder	Label	£5.04 £4.20
44	HV544 23 81-01 Available to backorder	Label	£3.88 £3.23
45	HV574 51 00-01 Available to backorder	Decal	£3.12 £2.60
49	HV725 24 51-71 Available to backorder	Screw Ehhmfor 967291002. 967291001. 967150401. 966756901	£4.54 £3.78
