Husqvarna R153S

Model Year - 2009-01

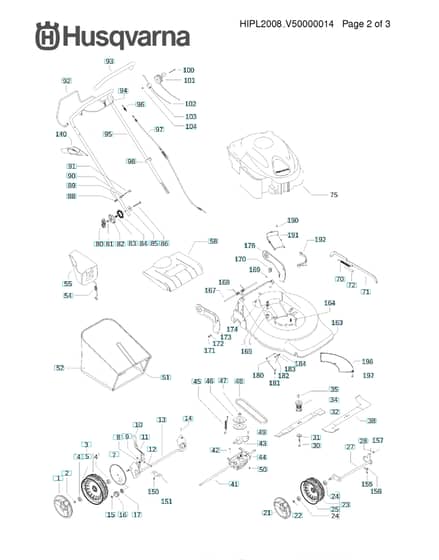

Product Complete - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV544 44 39-01 Available to backorder	Hub Cap	£9.72 £8.10
7	HV504 82 73-01 Available to backorder	Dust Cover	£8.40 £7.00
12	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
13	HV504 84 76-01 Available to backorder	Rear Axle	£105.80 £88.17
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
17	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
21	HV544 44 40-01 Available to backorder	Hub Cap	£9.06 £7.55
22	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
28	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
30	HV531 20 66-49 Available to backorder	Screw	£8.23 £6.86
31	HV531 20 72-37 Available to backorder	Washer	£3.64 £3.03
32	HV581 18 86-10 Available to backorder	Mower Blade	£35.12 £29.27
35	HV505 29 09-01 Available to backorder	Key	£2.89 £2.41
38	HV531 21 36-95 Available to backorder	Blade	£40.16 £33.47
41	HV544 37 62-02 Available to backorder	Gearbox	£147.52 £122.93
42	HV503 21 75-20 Available to backorder	Screw Ihscft	£2.06 £1.72
45	HV544 93 47-01 Available to backorder	Spring	£4.54 £3.78
48	HV531 20 67-01 Available to backorder	Belt	£23.62 £19.68
50	HV531 20 52-13 Available to backorder	Nut	£1.82 £1.52
52	HV531 20 83-83 Available to backorder	Bag	£95.76 £79.80
54	HV531 20 58-31 Available to backorder	Mulch Plug	£5.32 £4.43
58	HV531 20 65-18 Available to backorder	Cover	£29.46 £24.55
70	HV531 20 57-15 Available to backorder	Spring	£9.12 £7.60
80	HV531 20 58-40 Available to backorder	Knob	£9.72 £8.10
81	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
84	HV531 21 14-73 In stock	Segment	£15.54 £12.95
85	HV531 21 15-81 In stock	Plate	£4.92 £4.10
86	HV531 21 14-80 Available to backorder	Screw	£7.12 £5.93
88	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
90	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
92	HV531 21 26-76 Available to backorder	Loop	£32.36 £26.97
93	HV531 21 07-25 Available to backorder	Protector	£16.18 £13.48
95	HV531 21 20-39 Available to backorder	Handle	£53.92 £44.93
97	HV544 90 80-02 Available to backorder	Cable	£28.46 £23.72
101	HV531 21 34-91 Available to backorder	Control	£70.40 £58.67
103	HV531 20 80-43 In stock	Bracket	£1.26 £1.05
150	HV531 20 73-85 Available to backorder	Screw	£1.82 £1.52
165	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
168	HV501 32 25-01 Available to backorder	Spring	£5.44 £4.53
170	HV510 41 73-01 Available to backorder	Bushing	£5.68 £4.73
171	HV531 20 79-82 Available to backorder	Nut	£2.72 £2.27
172	HV531 20 79-81 Available to backorder	Washer	£2.34 £1.95
173	HV531 21 20-46 Available to backorder	Plate	£40.76 £33.97
180	HV531 20 57-34 Available to backorder	Plate	£13.76 £11.47
182	HV531 20 78-38 Available to backorder	Screw	£1.82 £1.52
184	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
191	HV531 21 32-25 Available to backorder	Cover	£7.20 £6.00
192	HV531 20 63-08 Available to backorder	Pawl	£14.40 £12.00
197	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
