Husqvarna R150SVH - Product Complete

Name: Husqvarna R150SVH - Product Complete
SKU: r150svh_2008_02_product_complete-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R150SVH

Model Year - 2008-02

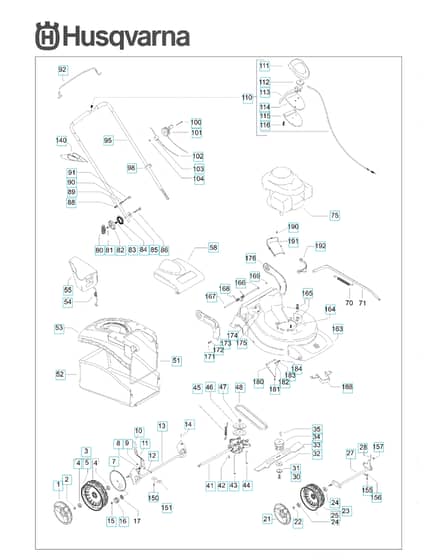

Product Complete - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV531 21 37-79 Available to backorder	Rod	£36.86 £30.72
1	HV544 44 39-01 Available to backorder	Hub Cap	£9.72 £8.10
1	HV504 59 13-02 In stock	Blade Support	£21.72 £18.10
2	HV531 20 50-56 Available to backorder	Spring	£15.54 £12.95
7	HV504 82 73-01 Available to backorder	Dust Cover	£8.40 £7.00
12	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
13	HV504 80 01-01 Available to backorder	Rear Axle	£104.36 £86.97
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
21	HV544 44 40-01 Available to backorder	Hub Cap	£9.06 £7.55
22	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
27	HV544 45 91-01 Available to backorder	Front Axle	£72.68 £60.57
28	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
30	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
31	HV531 20 72-37 Available to backorder	Washer	£3.64 £3.03
32	HV504 11 33-10 In stock	Blade	£33.66 £28.05
33	HV525 42 31-01 Available to backorder	Washer	£3.48 £2.90
35	HV531 20 49-07 In stock	Key	£1.55 £1.29
41	HV544 34 32-03 Available to backorder	Gearbox	£113.86 £94.88
42	HV538 24 08-62 Available to backorder	Screw	£1.56 £1.30
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.40 £7.00
45	HV544 93 47-01 Available to backorder	Spring	£4.54 £3.78
48	HV504 03 51-01 Available to backorder	Belt	£24.80 £20.67
51	HV501 32 24-01 Available to backorder	Frame	£31.72 £26.43
52	HV531 21 32-11 Available to backorder	Bag	£46.10 £38.42
54	HV531 21 11-91 Available to backorder	Spring	£5.82 £4.85
55	HV531 21 32-26 Available to backorder	Plug	£29.46 £24.55
58	HV501 32 23-05 Available to backorder	Deflector	£35.52 £29.60
80	HV531 20 58-40 Available to backorder	Knob	£9.72 £8.10
81	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
84	HV531 21 14-73 In stock	Segment	£15.54 £12.95
85	HV531 21 15-81 In stock	Plate	£4.92 £4.10
86	HV531 21 14-80 Available to backorder	Screw	£7.12 £5.93
90	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
92	HV531 21 26-76 Available to backorder	Loop	£32.36 £26.97
101	HV531 21 35-23 Available to backorder	Trigger	£49.82 £41.52
103	HV531 20 80-43 In stock	Bracket	£1.26 £1.05
104	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
110	HV544 93 29-02 Available to backorder	Control	£73.12 £60.93
116	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
150	HV531 20 73-85 Available to backorder	Screw	£1.82 £1.52
163	HV531 21 34-93 Available to backorder	Chassis	£332.40 £277.00
165	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
167	HV531 21 33-44 Available to backorder	Shaft	£5.26 £4.38
168	HV501 32 25-01 Available to backorder	Spring	£5.44 £4.53
171	HV531 20 79-82 Available to backorder	Nut	£2.72 £2.27
172	HV531 20 79-81 Available to backorder	Washer	£2.34 £1.95
173	HV531 21 20-46 Available to backorder	Plate	£40.76 £33.97
175	HV531 20 49-21 Available to backorder	Screw	£5.04 £4.20
180	HV501 96 60-01 Available to backorder	Deflector	£36.58 £30.48
182	HV531 20 78-38 Available to backorder	Screw	£1.82 £1.52
184	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
190	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
191	HV531 21 32-25 Available to backorder	Cover	£7.20 £6.00
192	HV531 20 63-08 Available to backorder	Pawl	£14.40 £12.00
