Husqvarna R150S - Product Complete

Name: Husqvarna R150S - Product Complete
SKU: r150s_product_complete-group
Price: 1.20 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R150S

Model Year - -

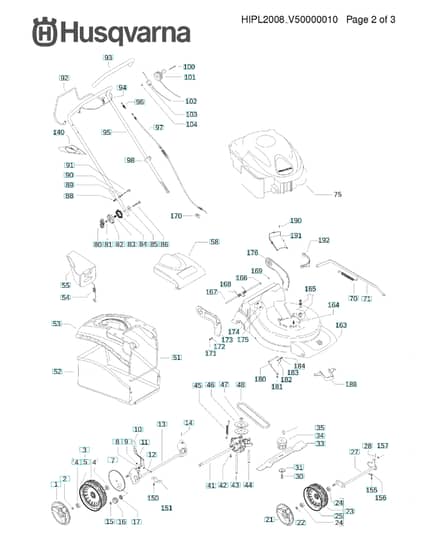

Product Complete - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV544 44 39-01 Out of stock	Hub Cap	£9.34 £7.78
7	HV504 82 73-01 Out of stock	Dust Cover	£8.08 £6.73
12	HV538 23 58-07 Out of stock	Screw	£2.71 £2.26
13	HV504 80 01-01 Out of stock	Rear Axle	£93.00 £77.50
16	HV544 34 23-01 Out of stock	Pinion	£10.37 £8.64
17	HV531 20 87-78 Out of stock	Bearing	£5.52 £4.60
21	HV544 44 40-01 Out of stock	Hub Cap	£8.53 £7.11
22	HV504 85 78-01 Out of stock	Nut	£3.52 £2.93
27	HV504 85 65-01 Out of stock	Front Axle Assy	£62.89 £52.41
28	HV531 20 66-53 Out of stock	Pin	£3.72 £3.10
30	HV531 20 66-49 Out of stock	Screw	£8.09 £6.74
31	HV531 20 72-37 Out of stock	Washer	£2.71 £2.26
33	HV504 11 33-10 In stock	Blade	£33.37 £27.81
35	HV505 29 09-01 Out of stock	Key	£2.33 £1.94
42	HV510 03 75-01 Out of stock	Screw	£1.51 £1.26
44	HV544 93 43-01 Out of stock	Belt Guide	£8.09 £6.74
45	HV544 93 47-01 Out of stock	Spring	£4.37 £3.64
48	HV504 03 51-01 Out of stock	Belt	£23.83 £19.86
51	HV501 32 24-01 Out of stock	Frame	£30.48 £25.40
52	HV531 21 32-11 Out of stock	Bag	£46.10 £38.42
54	HV531 20 58-31 Out of stock	Mulch Plug	£5.15 £4.29
55	HV531 21 32-26 Out of stock	Plug	£28.31 £23.59
58	HV501 32 23-05 Out of stock	Deflector	£35.52 £29.60
70	HV531 20 57-15 Out of stock	Spring	£9.12 £7.60
80	HV531 20 58-40 Out of stock	Knob	£9.34 £7.78
81	HV531 20 49-22 Out of stock	Washer	£2.48 £2.07
83	HV531 21 14-76 Out of stock	Spring	£3.52 £2.93
84	HV531 21 14-73 Out of stock	Segment	£15.18 £12.65
85	HV531 21 15-81 Out of stock	Plate	£4.72 £3.93
86	HV531 21 14-80 Out of stock	Screw	£6.47 £5.39
88	HV531 20 84-91 Out of stock	Nut	£1.99 £1.66
90	HV531 20 71-65 Out of stock	Nut	£1.99 £1.66
91	HV531 20 51-69 Out of stock	Pin Retaining Screw	£2.60 £2.17
92	HV531 21 26-76 Out of stock	Loop	£31.08 £25.90
93	HV531 21 07-25 Out of stock	Protector	£15.56 £12.97
95	HV531 21 20-39 Out of stock	Handle	£53.08 £44.23
97	HV544 90 80-03 Out of stock	Cable	£27.35 £22.79
101	HV531 21 34-91 Out of stock	Control	£64.08 £53.40
103	HV531 20 80-43 In stock	Bracket	£1.44 £1.20
150	HV531 20 73-85 Out of stock	Screw	£1.67 £1.39
163	HV531 21 34-93 Out of stock	Chassis	£326.52 £272.10
165	HV531 20 58-48 Out of stock	Connector	£9.34 £7.78
167	HV531 21 33-44 Out of stock	Shaft	£5.26 £4.38
168	HV501 32 25-01 Out of stock	Spring	£5.23 £4.36
170	HV510 41 73-01 Out of stock	Bushing	£5.46 £4.55
171	HV531 20 79-82 Out of stock	Nut	£2.33 £1.94
172	HV531 20 79-81 Out of stock	Washer	£2.23 £1.86
173	HV531 21 20-46 Out of stock	Plate	£39.17 £32.64
175	HV531 20 49-21 Out of stock	Screw	£4.86 £4.05
180	HV501 96 60-01 Out of stock	Deflector	£36.04 £30.03
182	HV531 20 78-38 Out of stock	Screw	£1.74 £1.45
184	HV531 20 84-92 Out of stock	Nut	£1.51 £1.26
190	HV531 20 78-56 Out of stock	Screw	£1.51 £1.26
191	HV531 21 32-25 Out of stock	Cover	£6.94 £5.78
192	HV531 20 63-08 Out of stock	Pawl	£13.84 £11.53
