Husqvarna R147S

Model Year - 2009-01

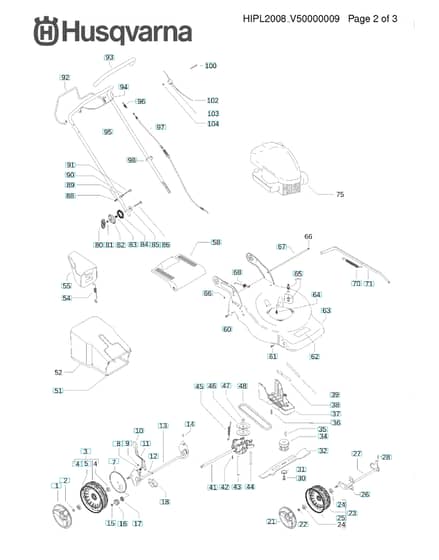

Product Complete - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV544 44 39-01 Available to backorder	Hub Cap	£9.72 £8.10
7	HV504 82 73-01 Available to backorder	Dust Cover	£8.40 £7.00
9	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
12	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
13	HV504 80 01-01 Available to backorder	Rear Axle	£104.36 £86.97
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
17	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
18	HV531 20 59-44 Available to backorder	Support	£8.40 £7.00
21	HV544 44 40-01 Available to backorder	Hub Cap	£9.06 £7.55
22	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
27	HV504 85 65-01 Available to backorder	Front Axle Assy	£65.48 £54.57
28	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
30	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
31	HV531 20 72-37 Available to backorder	Washer	£3.64 £3.03
32	HV581 18 89-10 In stock	Mower Blade	£31.84 £26.53
35	HV505 29 09-01 Available to backorder	Key	£2.89 £2.41
36	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
41	HV544 34 32-03 Available to backorder	Gearbox	£113.86 £94.88
42	HV538 24 08-62 Available to backorder	Screw	£1.56 £1.30
43	HV544 93 44-01 Available to backorder	Belt Guide	£9.72 £8.10
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.40 £7.00
45	HV544 93 47-01 Available to backorder	Spring	£4.54 £3.78
48	HV504 03 48-01 Available to backorder	Belt	£22.42 £18.68
51	HV531 21 34-67 Available to backorder	Frame	£53.68 £44.73
55	HV531 21 06-17 Available to backorder	Mulch Plug	£51.76 £43.13
58	HV531 20 59-81 Available to backorder	Cover	£16.38 £13.65
60	HV531 20 82-16 Available to backorder	Screw	£1.56 £1.30
61	HV531 20 88-44 Available to backorder	Screw	£1.26 £1.05
62	HV531 21 24-78 Available to backorder	Decal	£5.04 £4.20
63	HV531 21 38-97 Available to backorder	Deck	£168.24 £140.20
65	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
67	HV531 20 50-60 Available to backorder	Shaft	£19.42 £16.18
68	HV531 21 18-40 Available to backorder	Spring	£4.26 £3.55
71	HV531 21 05-87 Available to backorder	Rod	£32.36 £26.97
80	HV531 20 58-40 Available to backorder	Knob	£9.72 £8.10
81	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
84	HV531 21 14-73 In stock	Segment	£15.54 £12.95
85	HV531 21 15-81 In stock	Plate	£4.92 £4.10
86	HV531 21 14-80 Available to backorder	Screw	£7.12 £5.93
90	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
92	HV531 21 26-76 Available to backorder	Loop	£32.36 £26.97
93	HV531 21 07-25 Available to backorder	Protector	£16.18 £13.48
95	HV531 21 20-39 Available to backorder	Handle	£53.92 £44.93
103	HV531 20 80-43 In stock	Bracket	£1.26 £1.05
104	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
