Husqvarna R146S

Model Year - 2008-02

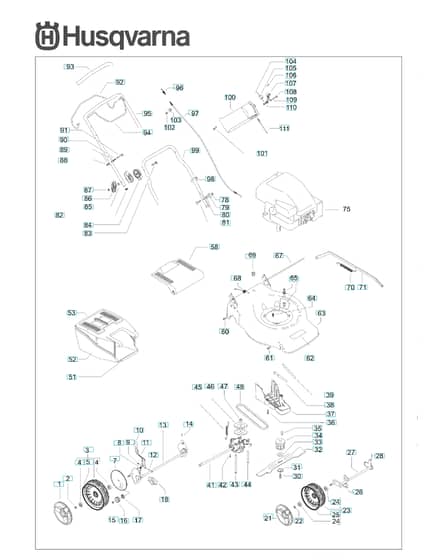

Product Complete - Parts Diagram

	Part No.	Details
1	HV544 44 39-01 Available to backorder	Hub Cap	£9.62 £8.02
7	HV504 82 73-01 Available to backorder	Dust Cover	£8.34 £6.95
12	HV538 23 58-07 Available to backorder	Screw	£2.83 £2.36
16	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
17	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
18	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
21	HV544 44 40-01 Available to backorder	Hub Cap	£8.98 £7.48
22	HV504 85 78-01 Available to backorder	Nut	£3.37 £2.81
27	HV544 45 91-01 Available to backorder	Front Axle	£69.60 £58.00
28	HV531 20 66-53 In stock	Pin	£3.91 £3.26
30	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
31	HV531 20 72-37 Available to backorder	Washer	£3.64 £3.03
32	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
35	HV531 20 49-07 In stock	Key	£1.55 £1.29
36	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
41	HV544 34 32-03 Available to backorder	Gearbox	£108.84 £90.70
42	HV538 24 08-62 Available to backorder	Screw	£1.56 £1.30
43	HV544 93 44-01 Available to backorder	Belt Guide	£9.62 £8.02
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.34 £6.95
45	HV544 93 47-01 Available to backorder	Spring	£4.31 £3.59
48	HV504 03 48-01 Available to backorder	Belt	£22.61 £18.84
58	HV531 20 59-81 Available to backorder	Cover	£16.21 £13.51
60	HV531 20 82-16 Available to backorder	Screw	£1.56 £1.30
62	HV531 21 24-78 Available to backorder	Decal	£5.02 £4.18
65	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
67	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
69	HV531 20 55-57 Available to backorder	Grommet	£3.84 £3.20
71	HV531 21 05-87 Available to backorder	Rod	£32.04 £26.70
79	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
80	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
81	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
82	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
84	HV531 20 58-39 Available to backorder	Knob	£12.18 £10.15
86	HV531 20 58-40 Available to backorder	Knob	£9.62 £8.02
87	HV531 20 79-82 Available to backorder	Nut	£2.28 £1.90
88	HV531 20 84-91 Available to backorder	Nut	£2.05 £1.71
90	HV531 20 71-65 Available to backorder	Nut	£2.05 £1.71
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.69 £2.24
93	HV531 20 83-07 Available to backorder	Bag	£59.04 £49.20
101	HV531 20 88-44 Available to backorder	Screw	£1.28 £1.07
103	HV531 20 79-23 Available to backorder	Support	£1.18 £0.98
104	HV531 21 37-89 Available to backorder	Cable	£28.84 £24.03
105	HV531 20 80-43 In stock	Bracket	£1.09 £0.91
107	HV531 20 51-39 Available to backorder	Bracket	£7.70 £6.42
110	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
