Husqvarna R 422TS

Model Year -

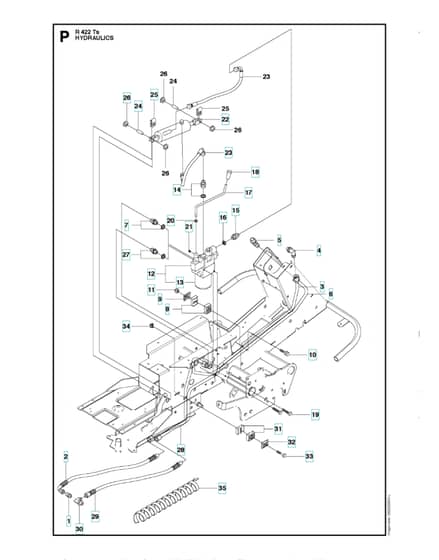

Hydraulics - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV535 42 65-01 Out of stock	Pipe Fitting		£13.43 £11.19
	2		HV535 45 03-01 Out of stock	Hydraulic Hose		£75.96 £63.30
	4		HV535 43 73-01 Out of stock	Pipe Fitting		£53.86 £44.88
	5		HV535 42 69-01 Out of stock	Pipe Fitting		£52.46 £43.72
	6		HV504 20 99-01 Out of stock	Hydraulic Pipe		£67.44 £56.20
	11		HV732 21 16-01 Out of stock	Lock Nut		£1.76 £1.47
	14		HV535 43 70-01 Out of stock	Pipe Fitting		£14.34 £11.95
	15		HV535 43 71-01 Out of stock	Pipe Fitting		£34.21 £28.51
	17		HV505 44 00-01 Out of stock	Lifting Lever		£25.90 £21.58
	18		HV535 43 82-01 Out of stock	Knob		£6.85 £5.71
	20		HV731 23 18-01 Out of stock	Hexagon Nut		£3.16 £2.63
	21		HV728 84 43-05 Out of stock	Screw Ihsetm		£1.51 £1.26
	22		HV535 42 72-01 Out of stock	Cylinder Assy		£452.28 £376.90
	23		HV535 42 71-03 Out of stock	Hydraulic Hose		£51.34 £42.78
	24		HV535 43 76-01 Out of stock	Locking Pin		£6.78 £5.65
	26		HV735 31 12-00 Out of stock	Circlip		£0.74 £0.62
	27		HV535 42 68-01 Out of stock	Pipe Fitting		£16.03 £13.36
	29		HV535 45 04-02 Out of stock	Hydraulic Hose		£32.50 £27.08
	30		HV535 42 66-01 Out of stock	Pipe Fitting		£49.30 £41.08
	31		HV544 37 33-03 Out of stock	Pipe Clamp		£5.45 £4.54
	35		HV544 02 66-01 Out of stock	Hose Guard		£17.05 £14.21
