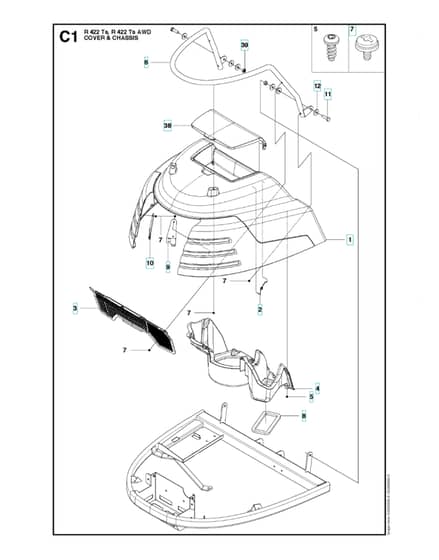

Husqvarna R 422TS - Chassis & Enclosures

Husqvarna R 422TS - Chassis & Enclosures

Description

Husqvarna R 422TS

Model Year -

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV504 12 41-01 Available to backorder	Spring		£3.48 £2.90
	3		HV502 48 22-01 Available to backorder	Grid		£24.58 £20.48
	6		HV502 49 46-01 Available to backorder	Load Carrier		£133.62 £111.35
	7		HV544 40 05-01 Available to backorder	Screw		£2.80 £2.33
	9		HV504 61 39-01 Available to backorder	Guide Plate		£22.94 £19.12
	10		HV504 61 39-02 Available to backorder	Guide Plate		£22.94 £19.12
	11		HV725 24 97-51 Available to backorder	Screw		£7.12 £5.93
	12		HV734 11 74-60 Available to backorder	Washer		£2.58 £2.15
	39		HV732 21 20-51 Available to backorder	Nut		£4.06 £3.38
