Husqvarna R 422TS AWD - Mower Lift & Deck Lift

Description

Husqvarna R 422TS AWD

Model Year -

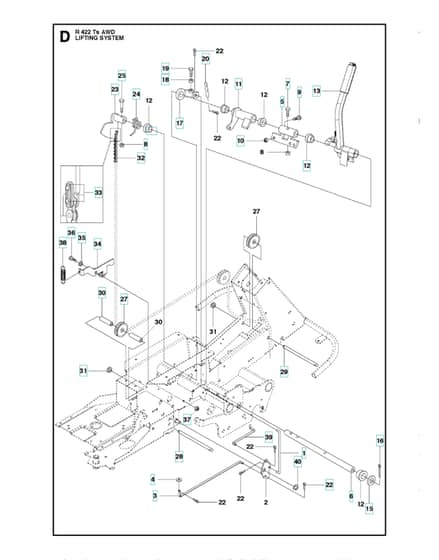

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
3	HV535 44 47-02 Available to backorder	Clutch Rod Rear	£16.66 £13.88
4	HV734 11 64-41 In stock	Washer	£3.25 £2.71
5	HV506 95 11-01 Available to backorder	Driver Assy	£109.08 £90.90
6	HV506 96 80-01 Available to backorder	Shaft	£70.20 £58.50
8	HV732 25 22-01 Available to backorder	Hexagon Locking Nutfor 966772901. <2011-11	£4.84 £4.03
9	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
10	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
11	HV506 95 14-01 Available to backorder	Actuator	£32.04 £26.70
12	HV584 87 13-01 Available to backorder	Bearing	£6.68 £5.57
13	HV504 90 79-01 Available to backorder	Lifting Lever Assy	£75.00 £62.50
15	HV506 51 57-01 Available to backorder	Washer	£4.63 £3.86
17	HV506 78 43-01 Available to backorder	Link Assy	£12.40 £10.33
19	HV725 24 97-51 Available to backorder	Screw	£7.06 £5.88
20	HV525 40 66-01 Available to backorder	Pen	£11.74 £9.78
22	HV721 61 83-01 Available to backorder	Split Pin	£0.72 £0.60
23	HV506 94 05-01 Available to backorder	Lifting Arm	£47.41 £39.51
24	HV506 81 70-01 Available to backorder	Spring	£7.82 £6.52
25	HV725 25 44-71 Available to backorder	Screw Ehhm	£7.09 £5.91
27	HV506 90 56-01 Available to backorder	Offset Pulley	£22.45 £18.71
28	HV506 90 57-01 Available to backorder	Shaft	£18.88 £15.73
29	HV506 90 57-02 Available to backorder	Shaft	£20.50 £17.08
30	HV506 90 58-01 Available to backorder	Tube Sleeve	£13.46 £11.22
31	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
32	HV506 55 46-08 Available to backorder	Chain	£55.51 £46.26
33	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
34	HV504 62 87-01 Available to backorder	Brake Lever	£20.88 £17.40
36	HV506 57 01-05 In stock	Screw Ehhfm	£1.06 £0.88
37	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
38	HV506 54 25-01 In stock	Spring	£6.86 £5.72
39	HV504 63 68-01 Available to backorder	Rod	£14.10 £11.75
40	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
