Husqvarna R 422TS AWD - Fuel System

Husqvarna R 422TS AWD - Fuel System

Description

Husqvarna R 422TS AWD

Model Year -

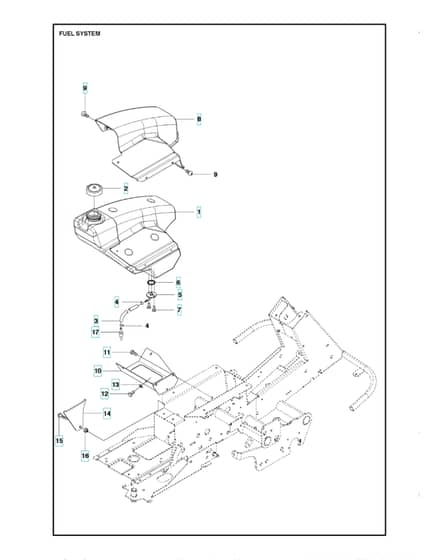

Fuel System - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV535 42 52-01 Available to backorder	Fuel Tank		£138.84 £115.70
	2		HV506 67 33-01 Available to backorder	Tank Cap Assy		£41.75 £34.79
	3		HV504 80 00-07 Available to backorder	Fuel Hose		£18.74 £15.62
	5		HV506 89 18-01 Available to backorder	Connection		£29.18 £24.32
	6		HV740 48 12-02 Available to backorder	O-Ring		£3.82 £3.18
	7		HV535 41 56-19 Available to backorder	Screw		£2.05 £1.71
	8		HV535 43 27-01 Available to backorder	Design Cover Tank		£138.24 £115.20
	9		HV535 42 58-01 Available to backorder	Screw Ihpanm		£2.05 £1.71
	10		HV535 43 86-01 Available to backorder	Bracket		£53.83 £44.86
	11		HV725 24 51-71 Available to backorder	Screw Ehhm		£4.50 £3.75
	12		HV725 23 66-51 Available to backorder	Hexagonal Screw M6X12		£1.56 £1.30
	15		HV725 24 95-71 Available to backorder	Screw Ehhm		£7.06 £5.88
	16		HV732 21 20-01 Available to backorder	Lock Nut		£4.09 £3.41

Description

Husqvarna R 422TS AWD

Model Year -

Fuel System - Parts Diagram
