Husqvarna R 422TS AWD - Frame

Name: Husqvarna R 422TS AWD - Frame
SKU: r_422ts_awd_frame-group
Price: 0.75 GBP
Availability: InStock

Part No. r_422ts_awd_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 422TS AWD

Model Year -

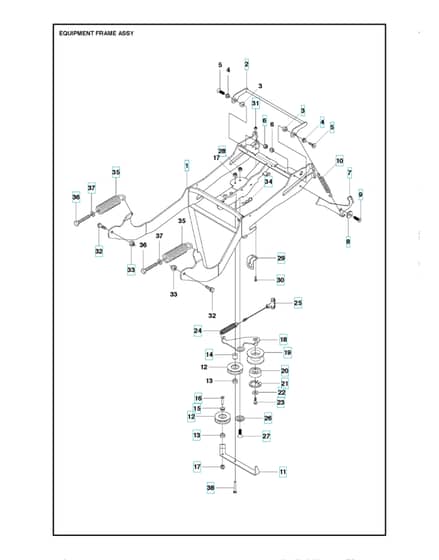

Frame - Parts Diagram

	Part No.	Details
1	HV502 63 79-01 Available to backorder	Equipment Framefor 966772901. 966772901. 966632501. <2014	£329.52 £274.60
1	HV586 19 30-01 Available to backorder	Equipment Frame	£331.80 £276.50
2	HV504 55 78-01 Available to backorder	Hook	£26.28 £21.90
8	HV506 91 87-01 Available to backorder	Washer	£7.70 £6.42
10	HV506 53 56-03 Available to backorder	Draw Spring	£6.00 £5.00
12	HV544 00 46-01 Available to backorder	Pulley Assy	£51.11 £42.59
13	HV544 00 34-01 Available to backorder	Bushing	£17.83 £14.86
14	HV544 00 34-02 Available to backorder	Bushing	£26.28 £21.90
16	HV725 64 59-01 Available to backorder	Screw Ihcsfm	£3.32 £2.77
18	HV504 62 19-01 Available to backorder	Belt Tensioner	£24.36 £20.30
20	HV738 21 04-04 Available to backorder	Ball Bearing	£8.71 £7.26
21	HV735 31 38-10 Available to backorder	Circlip	£0.90 £0.75
22	HV734 11 64-41 In stock	Washer	£3.25 £2.71
23	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.59 £2.99
24	HV504 62 24-01 In stock	Spring	£11.86 £9.88
25	HV504 62 21-01 Available to backorder	Handle Assy	£19.88 £16.57
27	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
28	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
29	HV504 62 17-01 Available to backorder	Guide	£12.32 £10.27
30	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.30 £1.92
31	HV732 21 16-01 Available to backorder	Lock Nut	£1.79 £1.49
32	HV506 89 58-01 Available to backorder	Collar Screw	£9.12 £7.60
33	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£4.84 £4.03
34	HV506 96 66-01 Available to backorder	Hair Pin Cotter	£1.15 £0.96
35	HV505 42 09-01 Available to backorder	Spring	£60.90 £50.75
36	HV725 25 15-71 Available to backorder	Screw Ehhm	£9.62 £8.02
37	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
38	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
