R 422TS AWD - Ride On Mower Parts
Husqvarna R 422TS AWD - Engine

Husqvarna R 422TS AWD - Engine

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 422TS AWD - Engine

Husqvarna R 422TS AWD - Engine

Description

Husqvarna R 422TS AWD

Model Year -

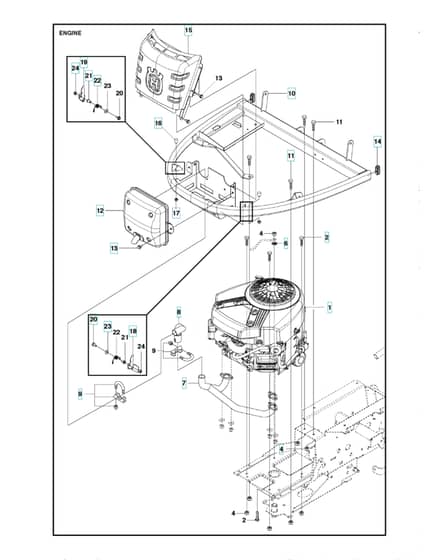

Engine - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV576 84 03-03 Available to backorder	Engine		£1,789.20 £1,491.00
	2		HV725 24 57-51 Available to backorder	Screw		£5.56 £4.63
	4		HV732 21 18-01 Available to backorder	Lock Nut		£2.40 £2.00
	6		HV735 21 64-00 Available to backorder	Lockwasher		£3.36 £2.80
	9		HV506 66 84-01 In stock	Clamp Assy		£1.78 £1.48
	10		HV578 86 58-01 Available to backorder	Engine Frame		£315.60 £263.00
	11		HV725 24 51-71 Available to backorder	Screw Ehhm		£4.54 £3.78
	13		HV535 47 52-12 Available to backorder	Screw Ehhfm		£3.62 £3.02
	14		HV504 64 36-01 Available to backorder	Plug		£4.26 £3.55
	15		HV505 39 55-02 Available to backorder	Heat Protector		£230.52 £192.10
	17		HV732 21 14-01 Available to backorder	Lock Nut		£1.78 £1.48
	18		HV504 61 34-03 Available to backorder	Latchright		£11.80 £9.83
	22		HV504 63 90-01 Available to backorder	Spring		£4.26 £3.55
	23		HV734 11 54-41 Available to backorder	Washer		£2.58 £2.15
	24		HV732 21 16-01 Available to backorder	Lock Nut		£1.82 £1.52

Description

Husqvarna R 422TS AWD

Model Year -

Engine - Parts Diagram
