Husqvarna R 422TS AWD - 103cm Cutting Deck 3

Description

Husqvarna R 422TS AWD

Model Year -

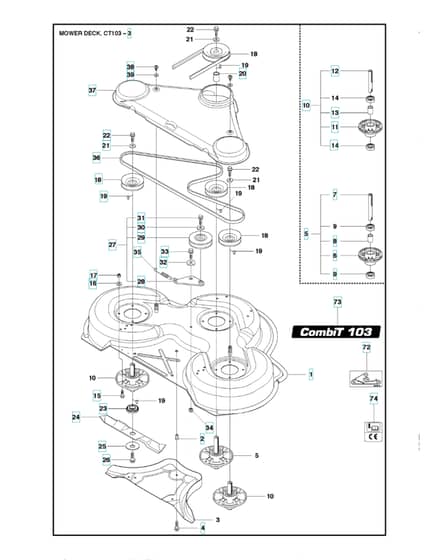

103cm Cutting Deck 3 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV506 91 62-01 Available to backorder	Nut	£6.08 £5.07
3	HV544 44 92-01 Available to backorder	Plug	£111.84 £93.20
4	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.04 £4.20
7	HV535 42 87-01 Available to backorder	Shaft	£40.00 £33.33
12	HV535 42 87-02 Available to backorder	Shaft	£69.82 £58.18
14	HV738 22 05-19 Available to backorder	Ball Bearing	£9.96 £8.30
15	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.04 £4.20
16	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
18	HV535 42 90-01 Available to backorder	Pulley	£81.34 £67.78
19	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
20	HV535 42 88-01 Available to backorder	Spacer	£9.06 £7.55
21	HV535 42 92-01 Available to backorder	Washer	£9.72 £8.10
23	HV535 50 42-01 Available to backorder	Adapter	£19.40 £16.17
24	HV504 19 04-10 Available to backorder	Blade	£42.72 £35.60
25	HV506 79 23-02 In stock	Knife Plate	£14.88 £12.40
26	HV725 25 42-51 Available to backorder	Screw Ehhm	£9.06 £7.55
29	HV506 53 27-01 Available to backorder	Pulley	£58.54 £48.78
30	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
31	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.62 £3.02
33	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
34	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
35	HV506 53 31-01 Available to backorder	Spring	£12.04 £10.03
36	HV589 53 44-01 Available to backorder	Belt	£58.44 £48.70
37	HV544 09 61-01 Available to backorder	Belt Cover	£58.86 £49.05
38	HV506 98 26-01 Available to backorder	Screw	£2.58 £2.15
39	HV506 55 97-01 Available to backorder	Washer	£2.34 £1.95
72	HV506 78 97-01 Available to backorder	Label	£5.04 £4.20
73	HV544 23 81-11 Available to backorder	Label	£5.04 £4.20
74	HV506 92 90-01 In stock	Label	Was £3.12 £2.60 Special Price £2.14 £1.78
