Husqvarna R 420TSX AWD

Model Year -

Pedals - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV506 57 01-04 Available to backorder	Screw Ehhfm		£5.04 £4.20
	2		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.58 £2.15
	3		HV732 21 16-01 Available to backorder	Lock Nut		£1.82 £1.52
	4		HV731 23 14-01 Available to backorder	Hexagon Nut		£1.51 £1.26
	5		HV586 96 93-01 Available to backorder	Pedal Plate Assy		£151.44 £126.20
	7		HV506 93 83-01 Available to backorder	Damping Piece		£77.36 £64.47
	8		HV506 94 63-01 Available to backorder	Brake Spring		£10.08 £8.40
	9		HV735 31 09-20 Available to backorder	E-Clip		£0.77 £0.64
	10		HV582 15 20-01 Available to backorder	Control Cable		£75.70 £63.08
	11		HV578 77 68-01 Available to backorder	Ball Joint		£11.64 £9.70
	12		HV522 43 08-01 Available to backorder	Bracket		£8.40 £7.00
	13		HV586 72 74-01 Available to backorder	Knob		£14.22 £11.85
	14		HV506 56 65-01 Available to backorder	Clip		£0.92 £0.77
	16		HV586 96 64-02 Available to backorder	Pedal		£17.65 £14.71
	17		HV586 96 64-01 Available to backorder	Pedal		£14.22 £11.85
	18		HV506 50 65-01 Available to backorder	Bearing Support		£8.82 £7.35
	19		HV506 95 41-01 Available to backorder	Bearing Support		£7.76 £6.47

Description

Husqvarna R 420TSX AWD

Model Year -

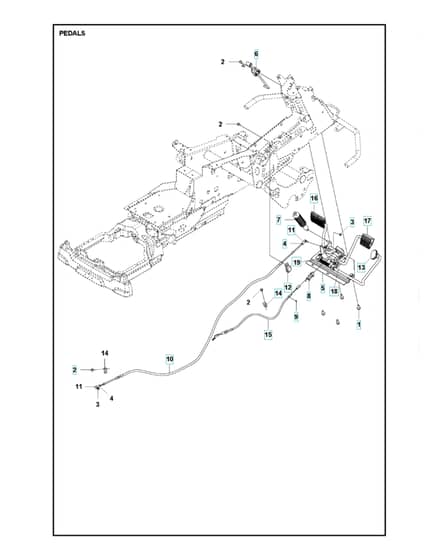

Pedals - Parts Diagram
