Husqvarna R 419TSX AWD - Height Adjustment

Husqvarna R 419TSX AWD - Height Adjustment

Description

Husqvarna R 419TSX AWD

Model Year -

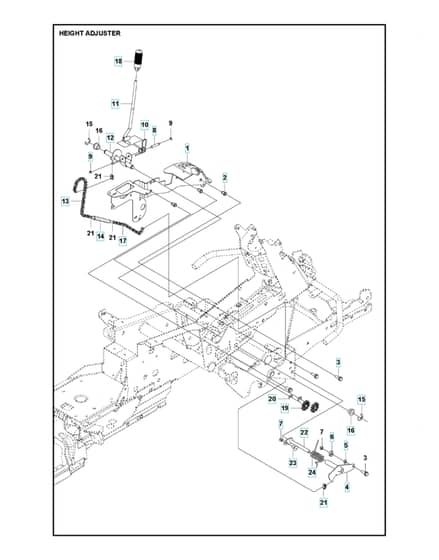

Height Adjustment - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV506 91 62-01 Out of stock	Nut		£5.82 £4.85
	3		HV506 57 01-05 Out of stock	Screw Ehhfm		£1.01 £0.84
	6		HV738 21 98-04 Out of stock	Ball Bearing		£6.08 £5.07
	9		HV735 31 09-20 Out of stock	E-Clip		£0.74 £0.62
	10		HV506 53 14-01 Out of stock	Spring		£5.65 £4.71
	13		HV506 55 46-13 Out of stock	Chain		£17.88 £14.90
	15		HV735 31 22-20 Out of stock	E-Clip		£0.86 £0.72
	16		HV584 87 13-02 Out of stock	Bearing		£5.58 £4.65
	20		HV735 31 15-20 Out of stock	E-Clip		£0.72 £0.60
	21		HV506 55 47-01 In stock	Linkage		£4.96 £4.13
	22		HV587 70 35-01 Out of stock	Cotter		£5.12 £4.27
	23		HV727 64 51-51 Out of stock	Screw Rsqm		£4.86 £4.05

Description

Husqvarna R 419TSX AWD

Model Year -

Height Adjustment - Parts Diagram
