Husqvarna R 418TS - Frame

Name: Husqvarna R 418TS - Frame
SKU: r_418ts_frame-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 418TS

Model Year -

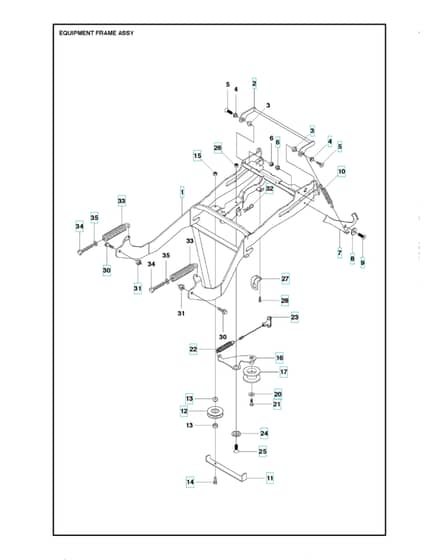

Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV738 21 04-04 Available to backorder	Ball Bearing	£8.42 £7.02
0	HV735 31 38-10 Available to backorder	Circlip	£0.92 £0.77
1	HV732 21 16-01 Available to backorder	Lock Nut	£1.82 £1.52
2	HV504 55 78-01 Available to backorder	Hook	£26.54 £22.12
5	HV725 64 59-01 Available to backorder	Screw Ihcsfm	£3.36 £2.80
8	HV506 91 87-01 Available to backorder	Washer	£7.60 £6.33
10	HV506 53 56-03 Available to backorder	Draw Spring	£5.96 £4.97
12	HV544 00 46-01 Available to backorder	Pulley Assy	£52.06 £43.38
13	HV544 00 34-01 Available to backorder	Bushing	£18.76 £15.63
16	HV504 62 19-01 Available to backorder	Belt Tensioner	£24.58 £20.48
20	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
21	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.62 £3.02
22	HV504 62 24-01 Available to backorder	Spring	£12.28 £10.23
23	HV504 62 21-01 Available to backorder	Handle Assy	£20.06 £16.72
25	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
26	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
27	HV504 62 17-01 Available to backorder	Guide	£12.44 £10.37
28	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.34 £1.95
30	HV506 89 58-01 Available to backorder	Collar Screw	£9.06 £7.55
31	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£5.96 £4.97
32	HV506 96 66-01 Available to backorder	Hair Pin Cotter	£1.16 £0.97
33	HV505 41 87-01 Available to backorder	Spring	£37.18 £30.98
34	HV725 25 15-71 Available to backorder	Screw Ehhm	£9.72 £8.10
35	HV734 11 72-01 Available to backorder	Washer	£2.02 £1.68
