Husqvarna R 322T AWD - Fuel System

Husqvarna R 322T AWD - Fuel System

Description

Husqvarna R 322T AWD

Model Year -

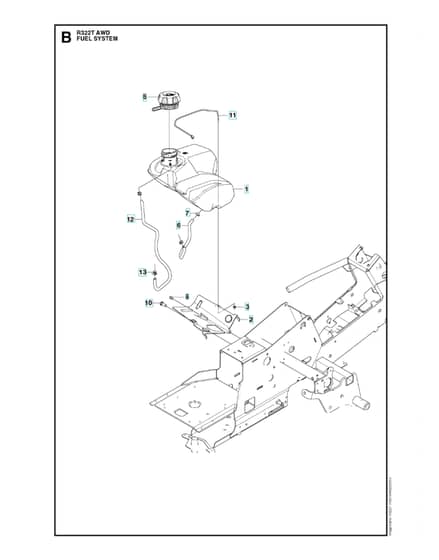

Fuel System - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV578 05 38-01 Available to backorder	Bracket		£47.22 £39.35
	3		HV732 21 16-01 Available to backorder	Lock Nut		£1.82 £1.52
	6		HV504 80 00-10 Available to backorder	Fuel Hose		£18.94 £15.78
	8		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.58 £2.15
	10		HV725 24 93-71 Available to backorder	Screw Ehhm		£6.94 £5.78

Description

Husqvarna R 322T AWD

Model Year -

Fuel System - Parts Diagram
