Husqvarna R 320 AWD - 44" 112cm Cutting Deck 2

Name: Husqvarna R 320 AWD - 44" 112cm Cutting Deck 2
SKU: r_320_awd_44_112cm_cutting_deck_2-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 320 AWD - 44" 112cm Cutting Deck 2

Description

Husqvarna R 320 AWD

Model Year -

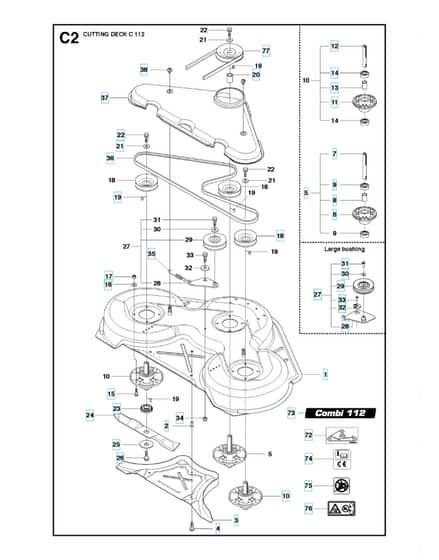

44" 112cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 20 95-01 Available to backorder	Cutting Deck	£484.80 £404.00
2	HV506 91 62-01 Available to backorder	Nut	£6.08 £5.07
3	HV544 44 93-01 Available to backorder	Plug	£126.76 £105.63
4	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.04 £4.20
5	HV576 38 41-01 Available to backorder	Blade Housing Assy	£149.12 £124.27
10	HV576 38 41-02 In stock	Blade Housing Assy	£134.88 £112.40
11	HV576 38 42-01 Available to backorder	Bearing Housing	£76.60 £63.83
12	HV576 38 43-02 Available to backorder	Shaft	£33.12 £27.60
13	HV576 38 44-01 Available to backorder	Spacing Sleeve	£11.64 £9.70
14	HV738 23 04-34 Available to backorder	Ball Bearing	£9.96 £8.30
15	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.04 £4.20
16	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
18	HV506 92 21-01 Available to backorder	Pulley	£37.42 £31.18
19	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
20	HV544 06 80-02 Available to backorder	Spacing Sleeve	£16.18 £13.48
21	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
23	HV535 50 42-02 In stock	Adapter	£23.28 £19.40
24	HV504 18 81-10 Available to backorder	Blade	£44.54 £37.12
26	HV544 11 41-01 In stock	Screw Ehhm	£1.82 £1.52
27	HV586 96 66-01 Available to backorder	Belt Tensioner Assylarge Bushing	£77.02 £64.18
28	HV585 35 99-01 Available to backorder	Armlarge Bushing	£28.46 £23.72
29	HV506 53 27-01 Available to backorder	Pulley	£58.54 £48.78
30	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
31	HV586 32 04-01 Available to backorder	Screwlarge Bushing	£2.52 £2.10
32	HV505 45 17-01 In stock	Washerlarge Bushing	£16.00 £13.33
33	HV725 24 51-71 Available to backorder	Screw Ehhmfor 966757401. 967151701	£4.54 £3.78
33	HV725 64 53-01 Available to backorder	Screw Ihcsfmlarge Bushing	£1.28 £1.07
34	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
35	HV506 53 31-01 Available to backorder	Spring	£12.04 £10.03
37	HV544 09 62-01 Available to backorder	Belt Cover	£61.46 £51.22
38	HV544 40 05-01 Available to backorder	Screw	£2.80 £2.33
72	HV506 78 97-01 Available to backorder	Label	£5.04 £4.20
73	HV544 23 81-05 Available to backorder	Label	£3.76 £3.13
74	HV506 92 90-01 In stock	Label	Was £3.12 £2.60 Special Price £2.14 £1.78
75	HV535 43 74-01 Available to backorder	Label Warning	£3.88 £3.23
76	HV574 51 00-01 Available to backorder	Decal	£3.12 £2.60
77	HV506 77 86-01 Available to backorder	Pulley	£82.51 £68.76
