Husqvarna R 318 - Transmission 2

Name: Husqvarna R 318 - Transmission 2
SKU: r_318_transmission_2-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 318

Model Year -

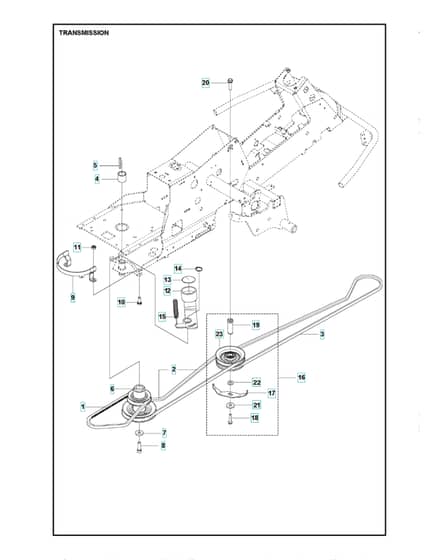

Transmission 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV589 53 12-01 In stock	Belt	£30.50 £25.42
2	HV599 67 59-02 In stock	Belt	£46.08 £38.40
3	HV594 97 80-01 In stock	Belt	£65.62 £54.68
4	HV506 50 92-01 Available to backorder	Spacing Sleeve	£10.36 £8.63
5	HV506 55 59-01 Available to backorder	Wedge	£4.80 £4.00
6	HV535 48 24-01 Available to backorder	Pulley	£109.40 £91.17
8	HV506 55 60-02 Available to backorder	Screw Unc	£7.56 £6.30
9	HV587 42 52-01 Available to backorder	Belt Guidefor 967291401. 967291402	£22.00 £18.33
9	HV506 66 45-01 Available to backorder	Belt Guidefor 966757301. 967151601	£18.76 £15.63
10	HV725 24 93-71 Available to backorder	Screw Ehhmfor 967291402. 967291401	£6.94 £5.78
11	HV732 21 20-51 Available to backorder	Nut	£4.06 £3.38
12	HV535 48 44-04 Available to backorder	Belt Tensioner Assy	£49.20 £41.00
14	HV735 31 26-00 Available to backorder	Circlip	£0.76 £0.63
15	HV506 66 56-01 Available to backorder	Spring	£14.52 £12.10
17	HV544 40 53-01 Available to backorder	Belt Guide	£11.00 £9.17
18	HV506 57 01-05 Available to backorder	Screw Ehhfmfor 966757301. 967151601	£1.01 £0.84
18	HV586 32 04-01 Available to backorder	Screwfor 967291401. 967291402	£2.52 £2.10
19	HV581 91 64-01 Available to backorder	Shaft	£24.64 £20.53
20	HV506 67 54-02 Available to backorder	Screw Ehhfm	£7.57 £6.31
21	HV506 77 57-01 Available to backorder	Washerfor 966757301. 967151601	£5.68 £4.73
22	HV506 59 75-01 Available to backorder	Washerfor 967151601. 966757301	£9.72 £8.10
22	HV586 32 02-01 Available to backorder	Distancefor 967291402. 967291401	£6.82 £5.68
23	HV535 48 22-01 Available to backorder	Pulley	£91.00 £75.83
