R 316TX - Ride On Mower Parts
Husqvarna R 316TX - Engine

Husqvarna R 316TX - Engine

Part No. r_316tx_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 316TX - Engine

Husqvarna R 316TX - Engine

Description

Husqvarna R 316TX

Model Year -

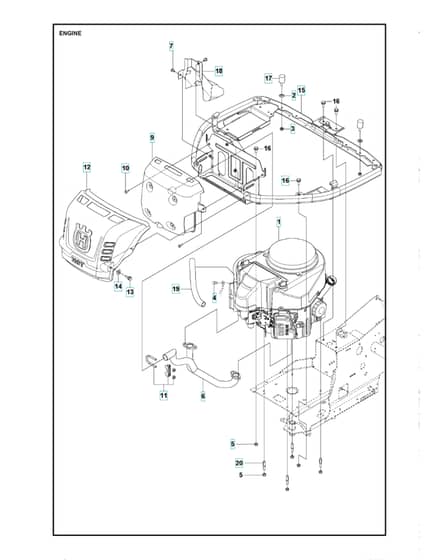

Engine - Parts Diagram

Ref.		Img.	Part No.	Details
	4		HV725 54 47-01 Available to backorder	Screw Ihscm		£0.77 £0.64
	5		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	6		HV578 11 88-01 Available to backorder	Manifold		£62.28 £51.90
	7		HV535 47 52-12 Available to backorder	Screw Ehhfm		£3.59 £2.99
	9		HV577 81 36-01 Available to backorder	Muffler		£297.58 £247.98
	10		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.56 £2.13
	11		HV501 15 22-01 Available to backorder	Clamp Assy		£1.79 £1.49
	12		HV577 81 85-02 Available to backorder	Heat Shield		£93.60 £78.00
	13		HV506 59 74-01 In stock	Screw Ehhfm		£6.12 £5.10
	14		HV506 83 94-01 Available to backorder	Spring Washer		£2.86 £2.38
	16		HV506 57 01-04 Available to backorder	Screw Ehhfm		£5.02 £4.18
	20		HV578 20 75-01 Available to backorder	Stud Screw		£5.02 £4.18

Description

Husqvarna R 316TX

Model Year -

Engine - Parts Diagram
