Husqvarna R 316T AWD - Seat

Name: Husqvarna R 316T AWD - Seat
SKU: r_316t_awd_seat-group
Price: 0.64 GBP
Availability: InStock

Part No. r_316t_awd_seat-group

Description

Husqvarna R 316T AWD

Model Year -

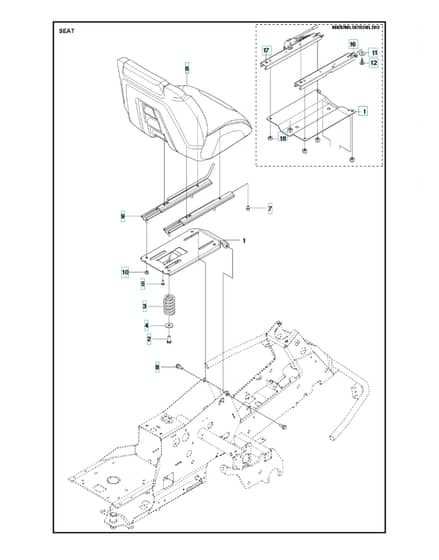

Seat - Parts Diagram

	Part No.	Details
1	HV573 99 50-01 Available to backorder	Seat Bracketfor 966757601. 967151901	£87.96 £73.30
2	HV725 24 93-71 Available to backorder	Screw Ehhm	£7.18 £5.98
3	HV506 91 53-01 Available to backorder	Compression Spring	£21.64 £18.03
4	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
5	HV725 23 68-61 Available to backorder	Screw Ehhft	£3.59 £2.99
6	HV587 60 53-03 Available to backorder	Seat Assyseat Kit For Old Models Between 2012-2014. B1500005	£324.71 £270.59
7	HV725 54 47-01 Available to backorder	Screw Ihscm	£0.77 £0.64
8	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
9	HV587 29 04-01 Available to backorder	Seat Adjuster	£52.56 £43.80
12	HV874 78 05-12 Available to backorder	Screwfor 966757601. 967151901	£2.99 £2.49
16	HV506 99 69-01 Available to backorder	Adjusterfor 966757601. 967151901	£51.91 £43.26
17	HV506 99 69-02 Available to backorder	Adjusterfor 967291701 - 2015. 966757601 & 967151901	£61.32 £51.10
18	HV732 21 18-01 In stock	Lock Nutfor 966757601. 967151901	£2.38 £1.98
