Husqvarna R 316T AWD - Electrical

Name: Husqvarna R 316T AWD - Electrical
SKU: r_316t_awd_electrical-group
Price: 0.98 GBP
Availability: InStock

Part No. r_316t_awd_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 316T AWD

Model Year -

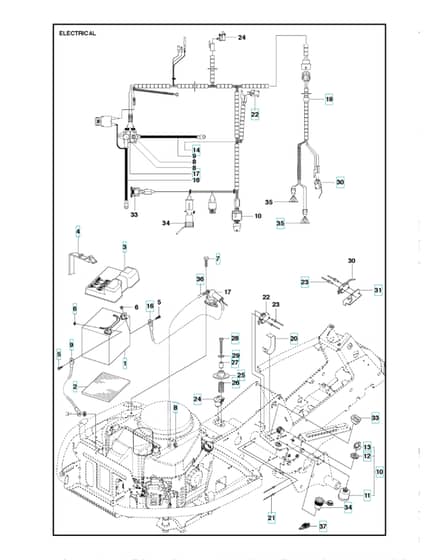

Electrical - Parts Diagram

	Part No.	Details
1	HV547 85 37-01 Available to backorder	Battery	£115.92 £96.60
2	HV535 44 11-01 Available to backorder	Battery Mat	£27.55 £22.96
3	HV578 20 06-01 Available to backorder	Cover	£33.97 £28.31
4	HV506 83 68-02 Available to backorder	Belt	£2.36 £1.97
7	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
9	HV576 18 39-01 Available to backorder	Cable	£11.03 £9.19
10	HV579 43 43-01 Available to backorder	Ignition Switch	£34.55 £28.79
11	HV578 26 17-01 Available to backorder	Ignition Switch	£30.08 £25.07
12	HV544 44 23-01 In stock	Nut	£1.54 £1.28
13	HV544 44 24-01 Available to backorder	Ignition Key	£10.57 £8.81
14	HV578 33 85-01 Available to backorder	Wiring	£81.48 £67.90
17	HV544 43 98-01 In stock	Relay	£18.72 £15.60
20	HV506 90 93-01 Available to backorder	Plate Spring	£6.01 £5.01
21	HV722 78 39-02 Available to backorder	Blind Rivet	£2.94 £2.45
22	HV574 31 60-01 Available to backorder	Switch	£14.70 £12.25
23	HV544 44 07-01 Available to backorder	Rivet	£2.94 £2.45
24	HV506 90 96-01 Available to backorder	Switch	£17.28 £14.40
25	HV506 90 97-01 Available to backorder	Spring Washer	£14.74 £12.28
26	HV544 44 12-01 Available to backorder	Spring	£4.50 £3.75
27	HV506 90 99-02 Available to backorder	Spacing Tube	£5.90 £4.92
29	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
30	HV574 31 61-01 Available to backorder	Switch	£17.59 £14.66
31	HV544 41 57-01 Available to backorder	Bracket	£7.70 £6.42
34	HV535 47 48-01 Available to backorder	Power Socket	£43.46 £36.22
35	HV582 21 42-01 Available to backorder	Lamp	£11.94 £9.95
36	HV576 18 38-01 Available to backorder	Cable	£19.88 £16.57
37	HV586 37 94-01 Available to backorder	Lever	£1.18 £0.98
