Husqvarna R 316T AWD - 94cm Cutting Deck

Name: Husqvarna R 316T AWD - 94cm Cutting Deck
SKU: r_316t_awd_94cm_cutting_deck-group
Price: 0.6 GBP
Availability: InStock

Part No. r_316t_awd_94cm_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 316T AWD - 94cm Cutting Deck

Description

Husqvarna R 316T AWD

Model Year -

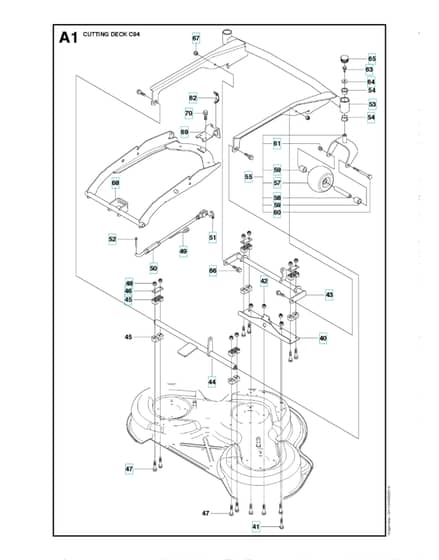

94cm Cutting Deck - Parts Diagram

	Part No.	Details
40	HV523 09 53-01 Available to backorder	Bracket	£71.28 £59.40
41	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.50 £3.75
43	HV502 64 18-02 Available to backorder	Cross Bar	£59.59 £49.66
45	HV506 86 96-01 Available to backorder	Bearing	£7.76 £6.47
46	HV506 81 38-01 Available to backorder	Reinforcing Plate	£7.06 £5.88
47	HV725 24 61-51 Available to backorder	Screw Ehhm	£6.29 £5.24
49	HV523 11 42-01 Available to backorder	Parallel Rod Assy	£60.24 £50.20
50	HV502 64 23-01 Available to backorder	Parallel Rod	£17.32 £14.43
52	HV721 61 83-01 Available to backorder	Split Pin	£0.72 £0.60
53	HV523 08 65-01 Available to backorder	Deck Frame	£215.76 £179.80
54	HV574 56 19-01 Available to backorder	Bearing	£8.48 £7.07
57	HV506 96 30-01 Available to backorder	Wheel Assy	£78.60 £65.50
58	HV506 81 08-02 Available to backorder	Tube	£12.18 £10.15
59	HV506 87 41-02 Available to backorder	Spacer	£8.34 £6.95
60	HV725 25 19-51 Available to backorder	Screw Ehhm	£11.54 £9.62
61	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
62	HV595 30 30-03 In stock	Snap Locking	£4.37 £3.64
63	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
64	HV734 11 64-41 In stock	Washer	£3.25 £2.71
65	HV574 03 48-01 Available to backorder	Plug	£4.50 £3.75
66	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
67	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
68	HV523 08 75-01 Available to backorder	Deck Attachment	£158.88 £132.40
69	HV523 11 46-01 Available to backorder	Lock	£16.66 £13.88
70	HV725 23 68-61 Available to backorder	Screw Ehhft	£3.59 £2.99
