Husqvarna R 216 AWD - Chassis Rear 2

Name: Husqvarna R 216 AWD - Chassis Rear 2
SKU: r_216_awd_chassis_rear_2-group
Price: 1.48 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 216 AWD

Model Year -

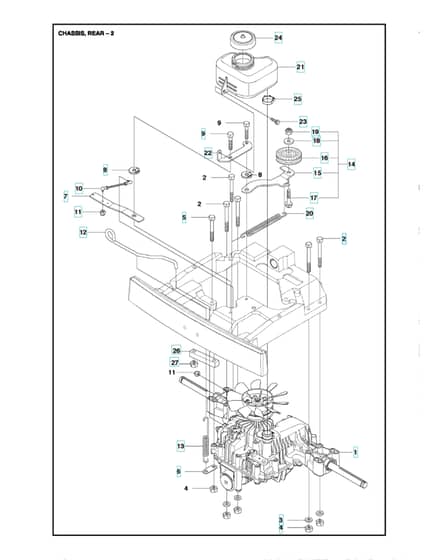

Chassis Rear 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV590 71 68-01 Available to backorder	Transmission	£838.80 £699.00
2	HV725 24 67-51 Available to backorder	Screw Ehhmfor 967291202	£7.76 £6.47
3	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
5	HV725 24 62-51 Available to backorder	Screw Ehhmfor 967291201. 967150701. 967291202	£6.34 £5.28
7	HV579 59 68-01 Available to backorder	Lever	£18.76 £15.63
8	HV584 28 86-04 Available to backorder	Washer	£3.29 £2.74
9	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
10	HV506 98 75-01 Available to backorder	Adjustment Rod	£15.14 £12.62
11	HV732 21 14-01 Available to backorder	Lock Nut	£1.78 £1.48
12	HV506 98 82-01 Available to backorder	Frikopplingsstång	£12.94 £10.78
13	HV506 83 43-01 Available to backorder	Spring	£3.80 £3.17
14	HV506 98 84-01 Available to backorder	Belt Tensioner Assy	£82.04 £68.37
16	HV506 94 69-01 Available to backorder	Pulley	£37.20 £31.00
17	HV725 24 55-51 Available to backorder	Screw	£3.62 £3.02
18	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
19	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
20	HV506 98 86-01 In stock	Spring	£4.45 £3.71
21	HV544 10 01-02 Available to backorder	Expansion Tank	£66.86 £55.72
23	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
24	HV506 67 33-01 Available to backorder	Tank Cap Assy	£40.36 £33.63
25	HV505 13 11-02 Available to backorder	Hose Clamp	£7.12 £5.93
26	HV506 98 72-01 Available to backorder	Momentfästefor 967291201. 967150701. 967291202	£25.22 £21.02
27	HV731 23 18-01 Available to backorder	Hexagon Nutfor 967291201. 967150701. 967291202	£3.24 £2.70
