Husqvarna R 200iX - 970649901 - Steering

Description

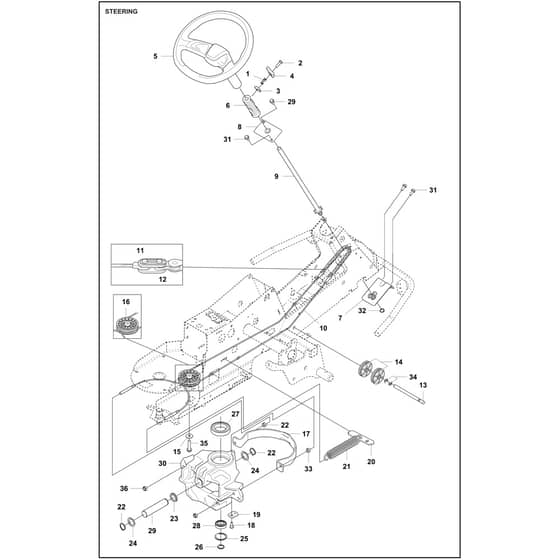

Husqvarna R 200iX - 970649901 - Steering - Parts Diagram

	Part No.	Details
1	HV593 86 88-01 Available to backorder	Spring	£3.52 £2.93
2	HV593 14 94-01 Available to backorder	Pin	£2.44 £2.03
3	HV593 60 52-01 Available to backorder	Fixing Plate	£6.67 £5.56
4	HV593 14 95-01 Available to backorder	Handle	£5.06 £4.22
5	HV593 16 61-02 Available to backorder	Steering Wheel	£91.32 £76.10
6	HV587 08 09-01 Available to backorder	Driver	£11.54 £9.62
7	HV583 89 97-01 Available to backorder	Bracket	£21.74 £18.12
8	HV584 15 56-01 Available to backorder	Bracket	£12.82 £10.68
9	HV593 94 99-01 Available to backorder	Steering Rod	£38.89 £32.41
10	HV501 60 48-04 In stock	Cable Assy	£21.84 £18.20
11	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
12	HV506 55 46-01 In stock	Chain	£22.55 £18.79
13	HV506 53 94-04 Available to backorder	Shaft	£20.66 £17.22
14	HV506 52 24-01 Available to backorder	Starter Pulley	£10.57 £8.81
15	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
16	HV576 49 25-01 Available to backorder	Pulley	£70.56 £58.80
17	HV589 50 43-01 Available to backorder	Guide Plate	£49.01 £40.84
18	HV506 59 74-01 In stock	Screw Ehhfm (M8 X 23)	£6.12 £5.10
19	HV599 64 62-01 Available to backorder	Link	£9.46 £7.88
20	HV590 73 54-01 Available to backorder	Spring Retainer	£14.71 £12.26
21	HV506 67 19-01 Available to backorder	Spring	£34.60 £28.83
22	HV735 31 28-00 Available to backorder	Circlip	£1.02 £0.85
23	HV740 68 15-21 Available to backorder	V-Ring	£5.03 £4.19
24	HV582 10 46-01 Available to backorder	Washer	£4.36 £3.63
25	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
26	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
27	HV738 21 10-04 Available to backorder	Ball Bearing	£9.85 £8.21
28	HV738 21 05-04 Available to backorder	Ball Bearing	£9.85 £8.21
29	HV535 46 30-02 Available to backorder	Swing Axle	£57.04 £47.53
30	HV501 67 94-01 Available to backorder	Spindle	£255.96 £213.30
31	HV506 57 01-04 Available to backorder	Screw Ehhfm (M8 X 20)	£5.02 £4.18
32	HV735 31 17-00 In stock	Circlip	£0.76 £0.63
33	HV731 23 20-01 Available to backorder	Hexagon Nut (M10)	£3.43 £2.86
34	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
35	HV506 67 54-03 Available to backorder	Screw Ehhfm (M10 X 45)	£6.29 £5.24
36	HV732 21 20-01 Available to backorder	Lock Nut (M10)	£4.09 £3.41
