Husqvarna R 200iX - 970649901 - Mower Lift / Deck Lift

Description

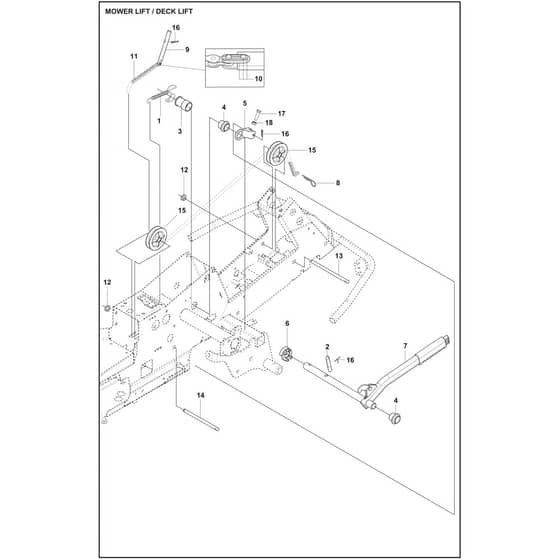

Husqvarna R 200iX - 970649901 - Mower Lift / Deck Lift - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV588 92 75-01 Available to backorder	Spring	£11.64 £9.70
2	HV525 40 66-01 Available to backorder	Pen	£11.35 £9.46
3	HV588 92 73-01 Available to backorder	Anvil	£10.36 £8.63
4	HV588 92 69-01 Available to backorder	Bearing	£7.12 £5.93
5	HV588 92 70-01 Available to backorder	Lifting Arm	£11.00 £9.17
6	HV588 92 71-01 Available to backorder	Anvil	£5.68 £4.73
7	HV590 88 06-01 Available to backorder	Lifting Lever Assy	£69.11 £57.59
8	HV721 68 02-51 Available to backorder	Spring Cotter	£0.92 £0.77
9	HV588 92 74-01 Available to backorder	Rod	£14.22 £11.85
10	HV506 55 47-01 In stock	Linkage (Sparepart linkage)	£4.92 £4.10
11	HV506 55 46-09 Available to backorder	Chain	£53.98 £44.98
12	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
13	HV582 87 19-02 Available to backorder	Shaft	£19.90 £16.58
14	HV582 87 19-01 Available to backorder	Shaft	£20.06 £16.72
15	HV506 90 56-01 Available to backorder	Offset Pulley	£23.76 £19.80
16	HV721 61 83-01 Available to backorder	Split Pin	£0.77 £0.64
17	HV725 24 97-51 Available to backorder	Screw (M10 X 35)	£7.12 £5.93
18	HV731 23 20-01 Available to backorder	Hexagon Nut (M10)	£3.04 £2.53
