Husqvarna R 200iX - 970649901 - Cover 01

Name: Husqvarna R 200iX - 970649901 - Cover 01
SKU: R_200iX_970649901_VV_636851_HighResPng-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 200iX - 970649901 - Cover 01

Description

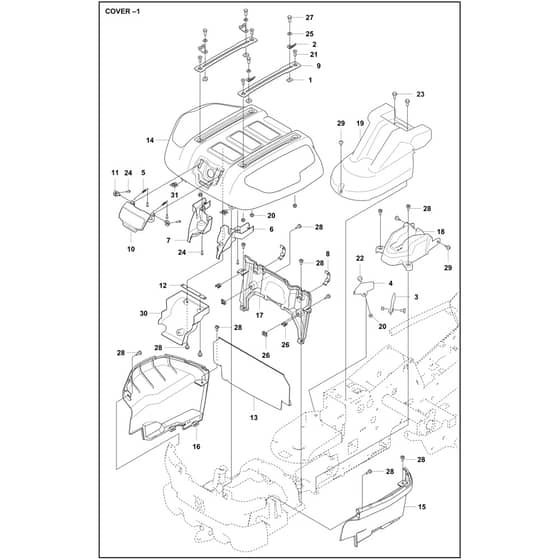

Husqvarna R 200iX - 970649901 - Cover - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV590 90 67-01 Available to backorder	Plate	£6.50 £5.42
2	HV594 94 05-01 Available to backorder	Loop	£3.44 £2.87
3	HV536 82 87-02 Available to backorder	Bracket (Right)	£8.86 £7.38
4	HV536 82 87-01 Available to backorder	Bracket (Left)	£8.86 £7.38
5	HV536 59 33-01 Available to backorder	Spring	£3.07 £2.56
6	HV534 97 96-01 Available to backorder	Tray (Right)	£13.00 £10.83
7	HV534 97 95-01 Available to backorder	Tray (Left)	£13.00 £10.83
8	HV588 46 28-03 In stock	Snap Locking	£4.45 £3.71
9	HV599 65 44-01 Available to backorder	Rail	£10.04 £8.37
10	HV599 65 42-01 Available to backorder	Lid (Charging)	£15.94 £13.28
11	HV535 01 45-01 Available to backorder	Hinge Pin	£1.42 £1.18
12	HV538 82 67-01 Available to backorder	Bracket	£30.13 £25.11
13	HV546 06 21-01 Available to backorder	Sheet (Splash guard)	£61.42 £51.18
14	HV537 63 87-01 Available to backorder	Cover (Engine hood)	£81.50 £67.92
15	HV599 33 69-01 Available to backorder	Cover (Rear right)	£33.07 £27.56
16	HV599 33 68-01 Available to backorder	Cover (Rear left)	£33.07 £27.56
17	HV599 33 74-01 Available to backorder	Cover (Front chassis rear)	£30.13 £25.11
18	HV599 62 38-01 Available to backorder	Cover (Mid channel)	£26.59 £22.16
19	HV599 65 38-01 Available to backorder	Cover (Mid upper)	£37.20 £31.00
20	HV732 21 18-01 Available to backorder	Lock Nut (M8)	£2.40 £2.00
21	HV725 64 53-01 Available to backorder	Screw Ihcsfm (M8 X 25)	£1.28 £1.07
22	HV727 64 49-51 Available to backorder	Screw Rsqm (M8 X 16)	£4.02 £3.35
23	HV506 57 01-04 Available to backorder	Screw Ehhfm (M8 X 20)	£5.04 £4.20
24	HV502 43 53-01 Available to backorder	Screw Itxpant (T50 X 16)	£1.51 £1.26
25	HV295 70 06-01 Available to backorder	Washer	£2.34 £1.95
26	HV535 42 91-01 Available to backorder	Spring Nut (M6 SPRING)	£1.28 £1.07
27	HV725 24 51-71 Available to backorder	Screw Ehhm (M8 X 20)	£4.54 £3.78
28	HV574 85 62-02 Available to backorder	Screw (M6 X 21)	£3.12 £2.60
29	HV544 40 05-01 Available to backorder	Screw (M6 X 19)	£2.80 £2.33
30	HV538 82 66-01 Available to backorder	Cover (Protection battery top)	£21.85 £18.21
