Husqvarna R 200iX - 970649901 - Chassis

Husqvarna R 200iX - 970649901 - Chassis

Part No. R_200iX_970649901_EY_574483_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 200iX - 970649901 - Chassis

Husqvarna R 200iX - 970649901 - Chassis

Description

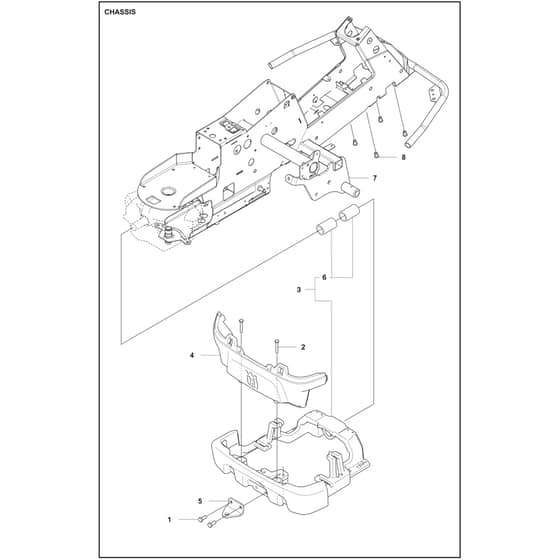

Husqvarna R 200iX - 970649901 - Chassis - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV725 24 93-71 Available to backorder	Screw Ehhm (M10 X 25)		£7.18 £5.98
	2		HV725 24 61-51 Available to backorder	Screw Ehhm (M8 X 50)		£6.29 £5.24
	3		HV599 14 29-01 Available to backorder	Frame Assy (Rear)		£516.00 £430.00
	4		HV598 87 81-01 Available to backorder	Frame		£279.24 £232.70
	5		HV506 88 99-01 Available to backorder	Hitch		£19.21 £16.01
	6		HV506 98 61-04 Available to backorder	Bushing		£16.54 £13.78
	7		HV594 92 14-04 Available to backorder	Chassis (Front)		£559.20 £466.00
	8		HV506 91 62-01 Available to backorder	Nut (M8 X 16.5)		£6.01 £5.01

Description

Husqvarna R 200iX - 970649901 - Chassis - Parts Diagram
