Husqvarna R 120S - Mower Lift & Deck Lift

Husqvarna R 120S - Mower Lift & Deck Lift

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 120S - Mower Lift & Deck Lift

Husqvarna R 120S - Mower Lift & Deck Lift

Description

Husqvarna R 120S

Model Year -

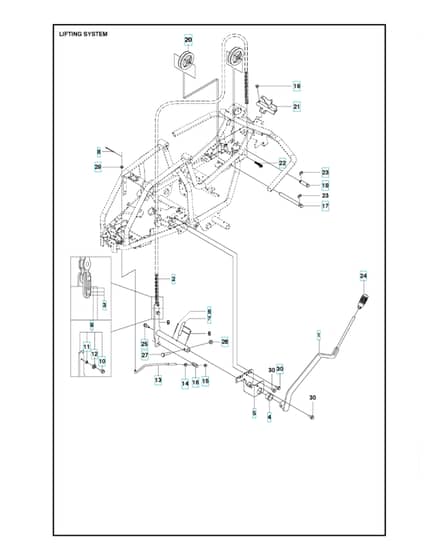

Mower Lift & Deck Lift - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV580 38 90-01 Available to backorder	Lever Assy		£55.64 £46.37
	2		HV506 55 46-11 Available to backorder	Chain		£43.92 £36.60
	3		HV506 55 47-01 In stock	Linkage		£4.92 £4.10
	6		HV721 61 87-01 Available to backorder	Split Pin		£0.77 £0.64
	7		HV525 40 66-01 Available to backorder	Pen		£11.64 £9.70
	8		HV721 61 83-01 Available to backorder	Split Pin		£0.77 £0.64
	10		HV725 24 49-61 Available to backorder	Screw Ehhft		£4.96 £4.13
	11		HV734 11 63-01 In stock	Washer		£2.54 £2.12
	12		HV738 21 98-04 Available to backorder	Ball Bearing		£6.36 £5.30
	14		HV731 23 18-01 Available to backorder	Hexagon Nut		£3.24 £2.70
	15		HV732 21 18-01 Available to backorder	Lock Nut		£2.40 £2.00
	19		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.58 £2.15
	20		HV506 90 56-01 Available to backorder	Offset Pulley		£23.76 £19.80
	22		HV721 68 02-51 Available to backorder	Spring Cotter		£0.92 £0.77
	23		HV735 31 18-20 Available to backorder	E-Clip		£0.77 £0.64
	25		HV506 59 74-01 In stock	Screw Ehhfm		£6.18 £5.15
	27		HV725 25 00-51 Available to backorder	Screw Ehhm		£7.76 £6.47
	28		HV732 21 20-51 Available to backorder	Nut		£4.06 £3.38
	29		HV734 11 64-01 Available to backorder	Washer		£2.34 £1.95
	30		HV506 57 01-03 Available to backorder	Screw Ehhfm		£5.04 £4.20

Description

Husqvarna R 120S

Model Year -

Mower Lift & Deck Lift - Parts Diagram
