Husqvarna R 120C - Chassis Rear

Husqvarna R 120C - Chassis Rear

Part No. r_120c_chassis_rear-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 120C - Chassis Rear

Husqvarna R 120C - Chassis Rear

Description

Husqvarna R 120C

Model Year -

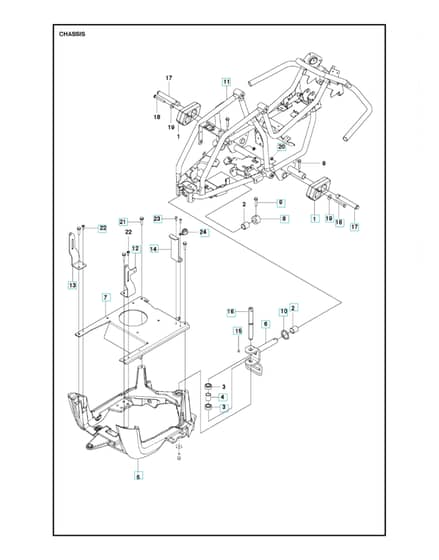

Chassis Rear - Parts Diagram

Ref.		Img.	Part No.	Details
	6		HV580 26 74-01 Available to backorder	Swing Axle		£159.84 £133.20
	9		HV725 24 59-61 Available to backorder	Screw Ehhft		£6.29 £5.24
	10		HV522 42 53-01 Available to backorder	Spacer		£9.62 £8.02
	11		HV581 27 41-01 Available to backorder	Frame		£597.08 £497.57
	15		HV577 70 89-01 Available to backorder	Key		£4.74 £3.95
	16		HV579 72 04-01 Available to backorder	Shaft		£42.77 £35.64
	17		HV535 47 08-02 Available to backorder	Wheel Axle		£48.48 £40.40
	19		HV734 11 64-41 In stock	Washer		£3.25 £2.71
	20		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	21		HV506 57 01-06 Available to backorder	Screw Ehhfm		£6.29 £5.24
	22		HV544 40 04-01 Available to backorder	Screw		£3.07 £2.56
	23		HV725 23 68-61 Available to backorder	Screw Ehhft		£3.59 £2.99

Description

Husqvarna R 120C

Model Year -

Chassis Rear - Parts Diagram
