Husqvarna R 115C - 95cm Cutting Deck

Name: Husqvarna R 115C - 95cm Cutting Deck
SKU: r_115c_95cm_cutting_deck-group
Price: 0.64 GBP
Availability: InStock

Part No. r_115c_95cm_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 115C

Model Year -

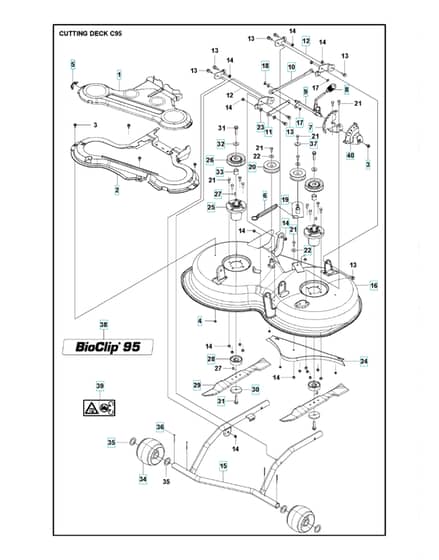

95cm Cutting Deck - Parts Diagram

	Part No.	Details
3	HV544 40 05-01 In stock	Screw	£2.75 £2.29
4	HV732 21 16-01 Available to backorder	Lock Nutm6-8.8 Lock	£1.79 £1.49
5	HV595 30 30-01 In stock	Snap Lockingfor 967252701	£4.37 £3.64
6	HV584 29 88-01 Available to backorder	Spring	£15.00 £12.50
8	HV574 32 88-01 Available to backorder	Handlefor 967252701	£12.18 £10.15
9	HV586 87 97-01 Available to backorder	Lever Assyfor 967252702	£27.55 £22.96
13	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
14	HV732 21 18-01 In stock	Lock Nutm8-8.8 Lock	£2.38 £1.98
17	HV735 58 52-01 Available to backorder	Washer	£2.30 £1.92
18	HV735 31 15-20 Available to backorder	E-Clip	£0.77 £0.64
20	HV586 10 43-02 Available to backorder	Belt Tensioner Wheel	£21.04 £17.53
21	HV725 24 51-71 Available to backorder	Screw Ehhmm8X20	£4.50 £3.75
22	HV734 11 64-41 In stock	Washer	£3.25 £2.71
23	HV734 11 77-71 Available to backorder	Washer	£2.56 £2.13
25	HV573 96 86-02 Available to backorder	Bearing Housing Assy	£106.44 £88.70
26	HV506 92 21-01 Available to backorder	Pulley	£37.07 £30.89
27	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
30	HV506 79 23-03 Available to backorder	Knife Plate	£12.05 £10.04
31	HV506 67 54-02 In stock	Screw Ehhfm	£7.49 £6.24
32	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
34	HV522 73 59-01 Available to backorder	Wheel	£44.26 £36.88
35	HV574 26 45-01 Available to backorder	Washer	£5.40 £4.50
36	HV721 61 87-01 Available to backorder	Split Pin	£0.77 £0.64
39	HV574 51 00-01 Available to backorder	Decal	£3.07 £2.56
40	HV573 97 18-01 Available to backorder	Cover	£17.32 £14.43
