Husqvarna R 112C5 - Transmission

Name: Husqvarna R 112C5 - Transmission
SKU: r_112c5_transmission-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R 112C5

Model Year -

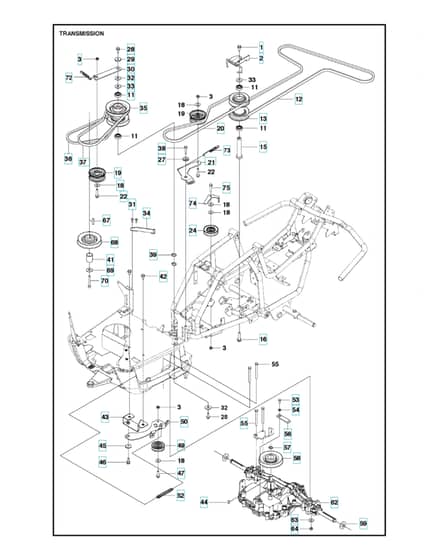

Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
11	HV738 21 04-04 Available to backorder	Ball Bearing	£8.42 £7.02
12	HV589 53 14-01 In stock	Belt	£61.58 £51.32
15	HV574 25 98-01 Available to backorder	Shaft	£25.20 £21.00
16	HV506 67 54-02 Available to backorder	Screw Ehhfm	£7.57 £6.31
18	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
19	HV539 91 90-78 In stock	Pulley	£38.09 £31.74
21	HV522 60 29-01 In stock	Belt Tensioner	Was £19.03 £15.86 Special Price £13.25 £11.04
22	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.34 £5.28
24	HV506 94 69-01 Available to backorder	Pulley	£37.20 £31.00
27	HV581 76 52-01 Available to backorder	Washer	£3.76 £3.13
30	HV522 83 16-01 Available to backorder	Bracket	£16.18 £13.48
31	HV725 23 68-61 Available to backorder	Screw Ehhft	£3.62 £3.02
32	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
34	HV581 86 51-01 Available to backorder	Bracket	£8.40 £7.00
35	HV584 81 88-01 Available to backorder	Pulley	£93.56 £77.97
36	HV589 53 13-01 Available to backorder	Belt	£26.03 £21.69
37	HV589 56 17-01 Available to backorder	Belt	£29.54 £24.62
38	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
39	HV735 31 22-00 Available to backorder	Circlip	£0.77 £0.64
42	HV506 57 01-03 Available to backorder	Screw Ehhfm	£5.04 £4.20
43	HV581 96 04-01 Available to backorder	Bracket	£18.76 £15.63
44	HV506 50 94-01 Available to backorder	Woodruff Key	£3.76 £3.13
46	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.04 £4.20
47	HV725 24 55-51 Available to backorder	Screw	£3.62 £3.02
49	HV506 79 34-01 Available to backorder	Belt Tens Wheel Assy	£22.32 £18.60
50	HV581 96 02-01 Available to backorder	Bracket	£20.06 £16.72
52	HV506 98 86-01 In stock	Spring	£4.45 £3.71
53	HV506 55 78-01 Available to backorder	U6S-Unf1/4"X28 L	£2.58 £2.15
55	HV725 24 66-51 Available to backorder	Screw	£7.12 £5.93
57	HV735 31 18-00 Available to backorder	Circlip	£0.77 £0.64
59	HV506 50 48-05 Available to backorder	Washer	£3.12 £2.60
62	HV581 84 79-01 Available to backorder	Transaxle	£476.40 £397.00
63	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
64	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
69	HV506 59 75-01 Available to backorder	Washer	£9.72 £8.10
70	HV506 55 60-02 Available to backorder	Screw Unc	£7.56 £6.30
72	HV574 50 61-01 Available to backorder	Spring	£9.72 £8.10
73	HV575 56 72-02 Available to backorder	Spring	£12.28 £10.23
75	HV725 24 57-51 Available to backorder	Screw	£5.56 £4.63
