Husqvarna R 112C5 - Electrical

Husqvarna R 112C5 - Electrical

Description

Husqvarna R 112C5

Model Year -

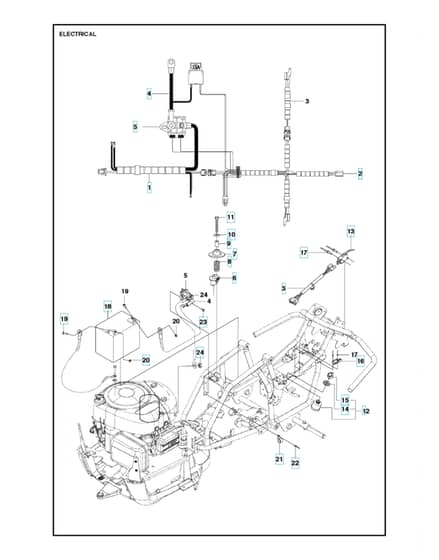

Electrical - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV581 97 24-01 Available to backorder	Wiring		£58.46 £48.72
	2		HV574 26 95-01 Available to backorder	Wiringfor 967178501		£52.18 £43.48
	3		HV574 26 96-01 Available to backorder	Wiring		£18.85 £15.71
	5		HV544 43 98-01 In stock	Relay		£18.72 £15.60
	6		HV506 90 96-01 Available to backorder	Switch		£17.28 £14.40
	7		HV506 90 97-01 Available to backorder	Spring Washer		£14.74 £12.28
	8		HV544 44 12-01 Available to backorder	Spring		£4.50 £3.75
	9		HV506 90 99-02 Available to backorder	Spacing Tube		£5.90 £4.92
	10		HV734 11 64-01 Available to backorder	Washer		£2.29 £1.91
	12		HV544 44 21-01 In stock	Ignition Switch		£27.55 £22.96
	14		HV544 44 23-01 In stock	Nut		£1.54 £1.28
	15		HV544 44 24-01 Available to backorder	Ignition Key		£10.57 £8.81
	16		HV574 31 61-01 Available to backorder	Switch		£17.59 £14.66
	17		HV544 44 07-01 Available to backorder	Rivet		£2.94 £2.45
	23		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.56 £2.13

Description

Husqvarna R 112C5

Model Year -

Electrical - Parts Diagram
