Husqvarna R 112C - Steering

Husqvarna R 112C - Steering

Part No. r_112c_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 112C - Steering

Husqvarna R 112C - Steering

Description

Husqvarna R 112C

Model Year -

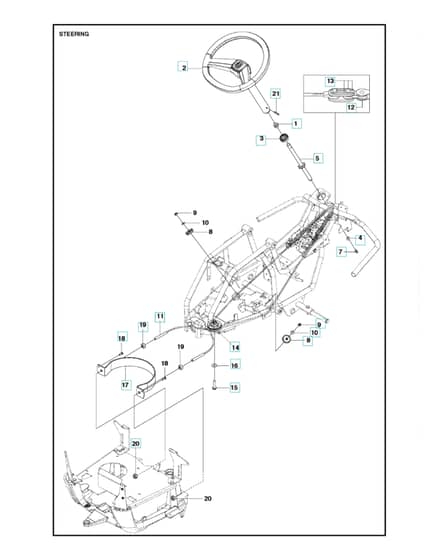

Steering - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV506 88 78-01 Available to backorder	Spacer		£7.70 £6.42
	3		HV738 21 04-04 Available to backorder	Ball Bearing		£8.71 £7.26
	4		HV734 11 54-41 Available to backorder	Washer		£2.56 £2.13
	5		HV581 56 67-01 Available to backorder	Steering Rod		£62.04 £51.70
	7		HV535 47 52-12 Available to backorder	Screw Ehhfm		£3.59 £2.99
	8		HV581 15 82-01 Available to backorder	Pulley		£9.98 £8.32
	9		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	10		HV734 11 64-01 Available to backorder	Washer		£2.29 £1.91
	11		HV501 60 48-01 Available to backorder	Cable Assyfor 967178402		£22.84 £19.03
	12		HV506 55 46-01 In stock	Chain		£22.55 £18.79
	13		HV506 55 47-01 In stock	Linkage		£4.86 £4.05
	14		HV576 49 25-02 Available to backorder	Pulley		£27.79 £23.16
	15		HV506 67 54-02 In stock	Screw Ehhfm		£7.49 £6.24
	16		HV734 11 74-41 Available to backorder	Washer		£4.69 £3.91
	17		HV525 40 43-01 Available to backorder	Guide Rail		£29.47 £24.56
	18		HV725 23 68-61 Available to backorder	Screw Ehhft		£3.59 £2.99
	19		HV731 23 20-01 Available to backorder	Hexagon Nut		£3.43 £2.86
	20		HV732 21 20-51 Available to backorder	Nut		£4.09 £3.41
	21		HV721 43 47-01 Available to backorder	Spring Pin		£1.67 £1.39

Description

Husqvarna R 112C

Model Year -

Steering - Parts Diagram
