Husqvarna R 112C - Engine

Husqvarna R 112C - Engine

Part No. r_112c_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 112C - Engine

Husqvarna R 112C - Engine

Description

Husqvarna R 112C

Model Year -

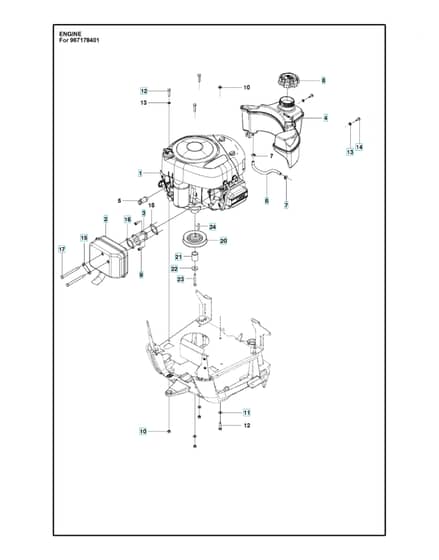

Engine - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV584 87 24-01 Available to backorder	Engine		£730.37 £608.64
	2		HV584 24 43-01 Available to backorder	Muffler Assy		£137.28 £114.40
	3		HV584 80 51-01 Available to backorder	Manifold		£31.18 £25.98
	4		HV581 61 43-01 Available to backorder	Fuel Tank		£41.02 £34.18
	6		HV504 80 00-15 Available to backorder	Fuel Hose		£11.29 £9.41
	8		HV532 43 96-45 Available to backorder	Fuel Cap		£30.76 £25.63
	9		HV506 55 63-01 Available to backorder	Screw Unc		£3.59 £2.99
	10		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	11		HV734 11 64-01 Available to backorder	Washer		£2.29 £1.91
	12		HV725 24 57-51 Available to backorder	Screw		£5.51 £4.59
	13		HV735 21 64-00 Available to backorder	Lockwasher		£3.32 £2.77
	14		HV544 40 04-01 Available to backorder	Screw		£3.07 £2.56
	15		HV578 25 93-01 Available to backorder	Washer		£7.06 £5.88
	17		HV578 25 91-01 Available to backorder	Collar Screw		£15.38 £12.82
	18		HV506 91 45-01 Available to backorder	Gasket		£7.03 £5.86

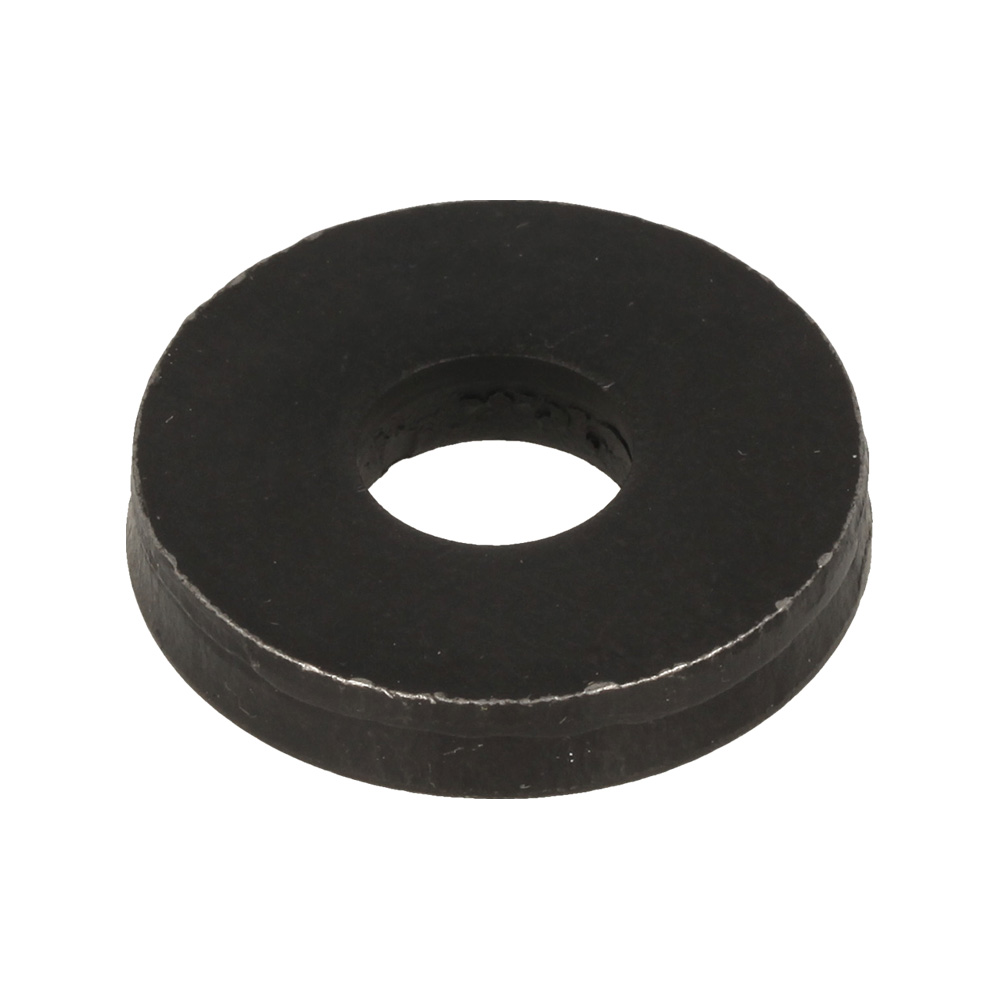

	22		HV506 59 75-01 In stock	Washer		£9.79 £8.16
	23		HV506 55 60-02 Available to backorder	Screw Unc		£7.82 £6.52

Description

Husqvarna R 112C

Model Year -

Engine - Parts Diagram
