Husqvarna R 111B5 - Mower Deck & Cutting Deck 2

Name: Husqvarna R 111B5 - Mower Deck & Cutting Deck 2
SKU: r_111b5_mower_deck_cutting_deck_2-group
Price: 1.98 GBP
Availability: InStock

Part No. r_111b5_mower_deck_cutting_deck_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 111B5 - Mower Deck & Cutting Deck 2

Description

Husqvarna R 111B5

Model Year -

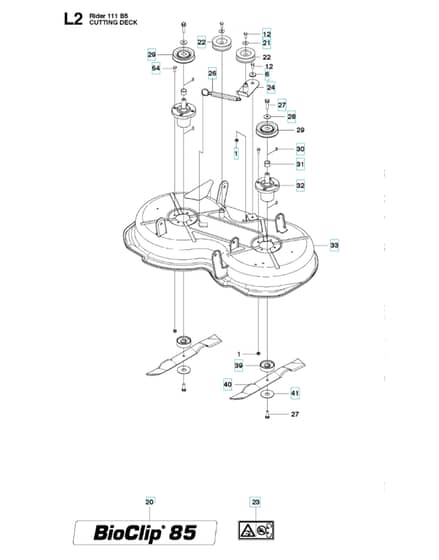

Mower Deck & Cutting Deck 2 - Parts Diagram

	Part No.	Details
1	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
12	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
21	HV734 11 64-41 In stock	Washer	£3.25 £2.71
23	HV574 51 00-01 Available to backorder	Decal	£3.07 £2.56
26	HV584 29 88-01 Available to backorder	Spring	£15.00 £12.50
27	HV506 67 54-02 In stock	Screw Ehhfm	£7.49 £6.24
28	HV734 11 77-71 Available to backorder	Washer	£2.56 £2.13
29	HV574 46 07-01 Available to backorder	Pulley	£34.93 £29.11
30	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
31	HV573 96 65-01 Available to backorder	Tube	£9.62 £8.02
32	HV573 96 86-01 Available to backorder	Bearing Housing Assy	£106.44 £88.70
39	HV577 79 11-01 Available to backorder	Adapter	£28.20 £23.50
40	HV581 08 35-01 Available to backorder	Blade	£35.98 £29.98
41	HV506 79 23-03 Available to backorder	Knife Plate	£12.05 £10.04
54	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.50 £3.75
