Husqvarna R 111B - Chassis & Enclosures

Husqvarna R 111B - Chassis & Enclosures

Description

Husqvarna R 111B

Model Year -

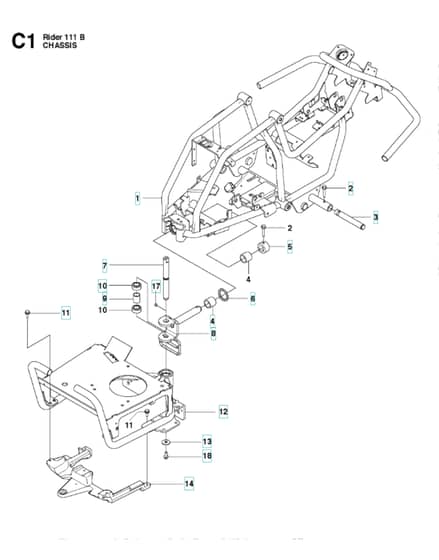

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV725 24 59-61 Available to backorder	Screw Ehhft		£6.34 £5.28
	3		HV535 47 08-01 Available to backorder	Wheel Axle		£48.94 £40.78
	6		HV522 42 53-01 Available to backorder	Spacer		£9.72 £8.10
	7		HV577 67 48-01 Available to backorder	Shaft		£51.12 £42.60
	8		HV577 70 50-01 Available to backorder	Swing Axle		£156.68 £130.57
	11		HV506 57 01-04 Available to backorder	Screw Ehhfm		£5.04 £4.20
	13		HV544 22 16-01 Available to backorder	Washer		£5.18 £4.32
	17		HV577 70 89-01 Available to backorder	Key		£4.78 £3.98

Description

Husqvarna R 111B

Model Year -

Chassis & Enclosures - Parts Diagram
