Husqvarna Pz61 - Repair Parts

Name: Husqvarna Pz61 - Repair Parts
SKU: pz61_2010_03_repair_parts-group
Price: 2.03 GBP
Availability: InStock

Part No. pz61_2010_03_repair_parts-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Pz61

Model Year - 2010-03

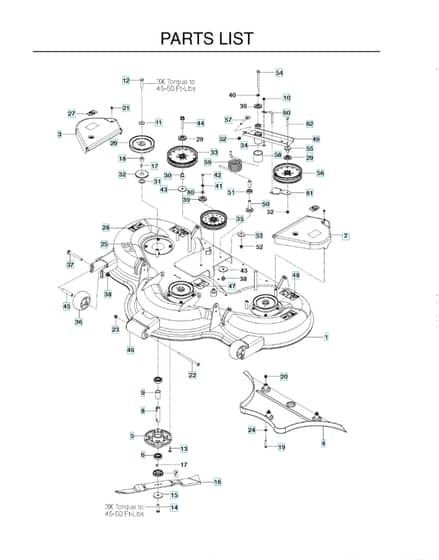

Repair Parts - Parts Diagram

	Part No.	Details
2	HV539 11 25-08 Available to backorder	Shieldlt	£132.96 £110.80
3	HV539 11 25-09 Available to backorder	Shieldrt	£110.40 £92.00
5	HV535 42 89-01 Available to backorder	Bearing Housing	£94.56 £78.80
6	HV738 22 05-19 Available to backorder	Ball Bearing	£9.85 £8.21
7	HV539 13 27-78 Available to backorder	Bushing	£58.40 £48.67
8	HV535 42 87-02 Available to backorder	Shaft	£66.84 £55.70
9	HV535 42 88-01 Available to backorder	Spacer	£8.98 £7.48
10	HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc	£2.69 £2.24
12	HV539 13 24-79 Available to backorder	Bolt	£8.98 £7.48
13	HV539 99 02-08 Available to backorder	Screw	£4.74 £3.95
14	HV539 13 24-80 Available to backorder	Bolt	£8.98 £7.48
15	HV506 79 23-02 In stock	Knife Plate	£14.71 £12.26
16	HV586 19 88-10 Available to backorder	Blade	£51.28 £42.73
17	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
18	HV539 11 26-09 Available to backorder	Spacer	£10.26 £8.55
21	HV539 99 03-62 Available to backorder	Screw	£2.56 £2.13
22	HV539 13 24-70 Available to backorder	Bolt	£7.06 £5.88
23	HV539 99 08-39 Available to backorder	Nut	£4.12 £3.43
24	HV539 99 01-88 Available to backorder	Washer	£2.44 £2.03
26	HV539 11 25-07 Available to backorder	Pulley	£108.84 £90.70
28	HV539 10 57-44 Available to backorder	Decal	£7.70 £6.42
30	HV539 11 45-82 Available to backorder	Spacer - Idler	£11.66 £9.72
31	HV539 12 70-99 Available to backorder	Washer	£5.46 £4.55
32	HV539 10 84-50 Available to backorder	Hub Cap	£10.26 £8.55
33	HV525 59 82-01 Available to backorder	Pulley	£83.64 £69.70
35	HV510 01 96-01 Available to backorder	Pulley	£77.16 £64.30
36	HV574 16 96-01 Available to backorder	Roller	£32.68 £27.23
37	HV510 02 23-01 Available to backorder	Screw	£28.84 £24.03
38	HV521 99 11-01 Available to backorder	Nut	£7.06 £5.88
41	HV539 99 01-18 Available to backorder	Washer	£2.54 £2.12
45	HV574 19 64-01 Available to backorder	Tube	£25.64 £21.37
46	HV544 18 54-01 Available to backorder	Roller	£71.28 £59.40
53	HV539 10 65-04 Available to backorder	Washer	£6.40 £5.33
56	HV510 01 51-01 Available to backorder	Pulley	£90.96 £75.80
