Husqvarna PROFLEX 21 AWD - 48" 122cm Cutting Deck 2

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

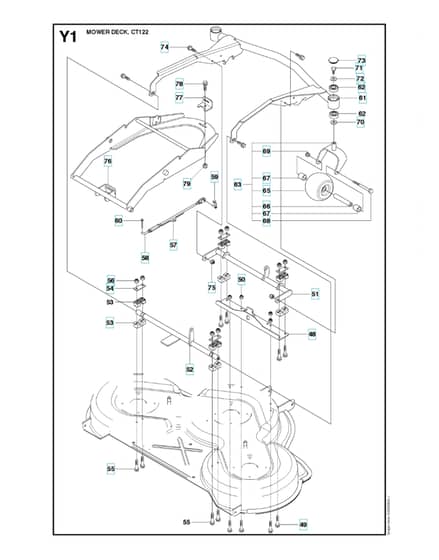

48" 122cm Cutting Deck 2 - Parts Diagram

	Part No.	Details
51	HV502 64 18-03 Available to backorder	Cross Bar	£60.12 £50.10
52	HV502 64 19-03 Available to backorder	Cross Bar	£63.84 £53.20
53	HV506 86 96-01 Available to backorder	Bearing	£7.76 £6.47
54	HV506 81 38-01 Available to backorder	Reinforcing Plate	£7.06 £5.88
55	HV725 24 61-51 Available to backorder	Screw Ehhm	£6.29 £5.24
58	HV502 64 23-01 Available to backorder	Parallel Rod	£17.32 £14.43
59	HV506 83 98-03 Available to backorder	Bolt	£5.88 £4.90
60	HV721 61 83-01 Available to backorder	Split Pin	£0.72 £0.60
62	HV738 21 04-04 Available to backorder	Ball Bearing	£8.71 £7.26
63	HV535 50 59-01 In stock	Pivothjul	£69.28 £57.73
65	HV506 96 30-01 Available to backorder	Wheel Assy	£78.60 £65.50
66	HV506 81 08-02 Available to backorder	Tube	£12.18 £10.15
67	HV506 87 41-02 Available to backorder	Spacer	£8.34 £6.95
68	HV725 25 19-51 Available to backorder	Screw Ehhm	£11.54 £9.62
69	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
70	HV506 50 48-05 Available to backorder	Washer	£3.06 £2.55
71	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
72	HV734 11 64-41 In stock	Washer	£3.25 £2.71
73	HV544 01 70-01 Available to backorder	Hub Cap	£4.50 £3.75
74	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
76	HV502 63 95-02 Available to backorder	Deck Attachment	£192.36 £160.30
77	HV502 64 24-01 Available to backorder	Lock	£9.72 £8.10
78	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.50 £3.75
79	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
