Husqvarna PROFLEX 20 - Steering Column

Name: Husqvarna PROFLEX 20 - Steering Column
SKU: proflex_20_2000_03_steering_column-group
Price: 0.66 GBP
Availability: InStock

Part No. proflex_20_2000_03_steering_column-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna PROFLEX 20

Model Year - 2000-03

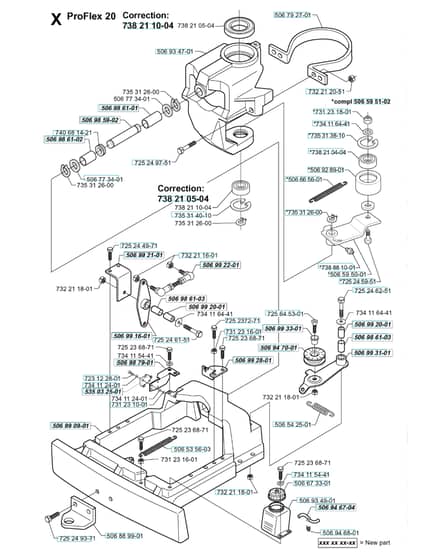

Steering Column - Parts Diagram

	Part No.	Details
506	HV506 66 56-01 In stock	Spring	£14.35 £11.96
506	HV506 88 99-01 Available to backorder	Hitch	£19.21 £16.01
506	HV506 98 61-03 Available to backorder	Bushing	£7.06 £5.88
506	HV506 99 20-01 Available to backorder	Pipe	£18.26 £15.22
506	HV506 53 56-03 Available to backorder	Draw Spring	£6.00 £5.00
506	HV506 67 33-01 Available to backorder	Tank Cap Assy	£41.75 £34.79
506	HV506 94 70-01 Available to backorder	Belt Tensioner Wheel	£31.38 £26.15
506	HV506 98 79-01 Available to backorder	Bracket	£8.98 £7.48
506	HV506 99 28-01 Available to backorder	Bracket	£10.26 £8.55
506	HV506 54 25-01 In stock	Spring	£6.86 £5.72
506	HV506 77 34-01 Available to backorder	Washer	£4.18 £3.48
506	HV506 98 61-02 Available to backorder	Glidlager	£14.10 £11.75
506	HV506 99 16-01 Available to backorder	Lever	£28.24 £23.53
506	HV506 99 33-01 Available to backorder	Sleeve	£8.98 £7.48
725	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.30 £1.92
725	HV725 24 61-51 Available to backorder	Screw Ehhm	£6.29 £5.24
725	HV725 24 97-51 Available to backorder	Screw	£7.06 £5.88
725	HV725 23 72-71 Available to backorder	Screw Ehhm	£2.60 £2.17
725	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
725	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
725	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.40 £5.33
725	HV725 24 93-71 Available to backorder	Screw Ehhm	£7.18 £5.98
731	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.56 £1.30
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
731	HV731 23 10-01 Available to backorder	Hexagon Nut	£1.56 £1.30
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
732	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
732	HV732 21 16-01 Available to backorder	Lock Nut	£1.79 £1.49
734	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
734	HV734 11 64-41 In stock	Washer	£3.25 £2.71
734	HV734 11 24-01 Available to backorder	Washer	£2.83 £2.36
735	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
735	HV735 31 38-10 Available to backorder	Circlip	£0.90 £0.75
735	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
738	HV738 21 04-04 Available to backorder	Ball Bearing	£8.71 £7.26
738	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.09 £9.24
738	HV738 21 05-04 Available to backorder	Ball Bearingcorrection	£9.85 £8.21
738	HV738 21 10-04 Available to backorder	Ball Bearingcorrection	£9.85 £8.21
740	HV740 68 14-21 Available to backorder	V-Ring	£4.97 £4.14
