Husqvarna PROFLEX 18 - Transmission 2

Name: Husqvarna PROFLEX 18 - Transmission 2
SKU: proflex_18_2004_06_transmission_2-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna PROFLEX 18

Model Year - 2004-06

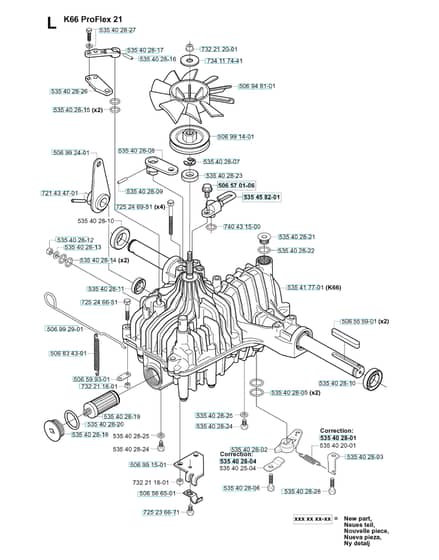

Transmission 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 57 01-06 Available to backorder	Screw Ehhfm	£6.34 £5.28
506	HV506 99 14-01 Available to backorder	Pulley	£89.94 £74.95
506	HV506 55 59-01 Available to backorder	Wedge	£4.80 £4.00
506	HV506 83 43-01 Available to backorder	Spring	£3.80 £3.17
506	HV506 99 24-01 Available to backorder	Lever	£16.28 £13.57
506	HV506 56 65-01 Available to backorder	Clip	£0.92 £0.77
506	HV506 94 81-01 Available to backorder	Fan	£16.32 £13.60
535	HV535 40 28-05 Available to backorder	O-Ring	£12.28 £10.23
535	HV535 40 28-10 Available to backorder	Sealing	£18.24 £15.20
535	HV535 40 28-15 Available to backorder	O-Ring	£4.02 £3.35
535	HV535 40 28-18 Available to backorder	Cover	£16.18 £13.48
535	HV582 16 29-01 Available to backorder	Clip	£4.18 £3.48
535	HV535 40 28-11 Available to backorder	Sealing	£23.28 £19.40
535	HV535 40 28-16 Available to backorder	Pin Retaining Screw	£3.32 £2.77
535	HV535 40 28-22 Available to backorder	O-Ring	£7.76 £6.47
535	HV535 40 28-09 Available to backorder	Pin Retaining Screw	£4.64 £3.87
535	HV535 40 28-14 Available to backorder	O-Ring	£3.14 £2.62
535	HV535 40 28-17 Available to backorder	Lever	£17.46 £14.55
535	HV535 41 77-01 Available to backorder	Transmissionk66	£2,158.80 £1,799.00
721	HV721 43 47-01 Available to backorder	Spring Pin	£1.68 £1.40
725	HV725 24 69-51 Available to backorder	Screw Ehhm	£5.82 £4.85
725	HV725 23 66-71 Available to backorder	Screw Ehhm	£2.84 £2.37
725	HV725 24 66-51 Available to backorder	Screw	£7.12 £5.93
732	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
732	HV732 21 20-01 Available to backorder	Lock Nut	£4.06 £3.38
734	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
