Husqvarna PROFLEX 1200 - 48" 122cm Cutting Deck

Name: Husqvarna PROFLEX 1200 - 48" 122cm Cutting Deck
SKU: proflex_1200_48_122cm_cutting_deck-group
Price: 1.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna PROFLEX 1200 - 48" 122cm Cutting Deck

Description

Husqvarna PROFLEX 1200

Model Year -

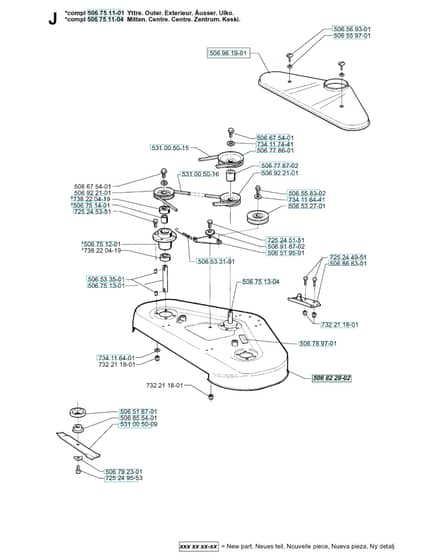

48" 122cm Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 53 31-01 Available to backorder	Spring	£12.04 £10.03
506	HV506 55 97-01 Available to backorder	Washer	£2.34 £1.95
506	HV506 75 13-01 Available to backorder	Shaft	£52.40 £43.67
506	HV506 77 86-01 Available to backorder	Pulley	£82.51 £68.76
506	HV506 96 19-01 Available to backorder	Belt Cover	£59.82 £49.85
506	HV506 51 87-01 In stock	Dust Cover	£6.08 £5.07
506	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
506	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.12 £5.93
506	HV506 75 13-04 Available to backorder	Shaft	£39.58 £32.98
506	HV506 78 97-01 Available to backorder	Label	£5.04 £4.20
506	HV506 53 27-01 Available to backorder	Pulley	£58.54 £48.78
506	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.62 £3.02
506	HV506 75 14-01 Available to backorder	Spacer	£12.28 £10.23
506	HV506 92 21-01 Available to backorder	Pulley	£37.42 £31.18
531	HV589 53 14-01 In stock	Belt	£61.58 £51.32
725	HV725 24 51-51 Available to backorder	Screw	£3.62 £3.02
725	HV725 24 53-51 Available to backorder	Screw Ehhm	£4.54 £3.78
725	HV725 24 49-51 Available to backorder	Screw	£3.36 £2.80
732	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
734	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
734	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
734	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
738	HV738 22 04-19 Available to backorder	Ball Bearing	£8.41 £7.01
