Description

Husqvarna PR18 AWD

Model Year -

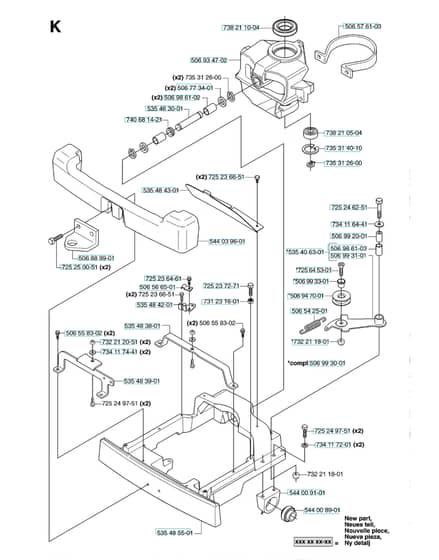

Steering Column - Parts Diagram

	Part No.	Details
506	HV506 98 61-02 Available to backorder	Glidlager	£14.10 £11.75
506	HV506 99 30-01 Available to backorder	Belt Tensioner Assy	£66.24 £55.20
506	HV506 56 65-01 Available to backorder	Clip	£0.90 £0.75
506	HV506 88 99-01 Available to backorder	Hitch	£19.21 £16.01
506	HV506 98 61-03 Available to backorder	Bushing	£7.06 £5.88
506	HV506 99 33-01 Available to backorder	Sleeve	£8.98 £7.48
506	HV506 54 25-01 In stock	Spring	£6.86 £5.72
506	HV544 42 73-01 Available to backorder	Styrkrans	£43.72 £36.43
506	HV506 94 70-01 Available to backorder	Belt Tensioner Wheel	£31.38 £26.15
506	HV506 99 20-01 Available to backorder	Pipe	£18.26 £15.22
506	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.59 £2.99
506	HV506 77 34-01 Available to backorder	Washer	£4.18 £3.48
535	HV535 46 30-01 Available to backorder	Swing Axle	£55.61 £46.34
535	HV535 40 63-01 Available to backorder	Belt Tensioner Assy	£80.64 £67.20
725	HV725 23 72-71 Available to backorder	Screw Ehhm	£2.60 £2.17
725	HV725 25 00-51 Available to backorder	Screw Ehhm	£7.70 £6.42
725	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
725	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
725	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
725	HV725 23 66-51 Available to backorder	Hexagonal Screw M6X12	£1.56 £1.30
725	HV725 24 97-51 Available to backorder	Screw	£7.06 £5.88
731	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.56 £1.30
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
732	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
734	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
734	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
734	HV734 11 64-41 In stock	Washer	£3.25 £2.71
735	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
735	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
738	HV738 21 05-04 Available to backorder	Ball Bearing	£9.85 £8.21
738	HV738 21 10-04 Available to backorder	Ball Bearing	£9.85 £8.21
740	HV740 68 14-21 Available to backorder	V-Ring	£4.97 £4.14
