Husqvarna PR14 - Transmission

Name: Husqvarna PR14 - Transmission
SKU: pr14_transmission-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna PR14

Model Year -

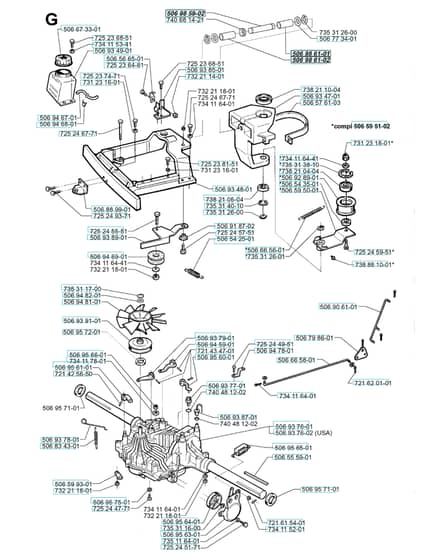

Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 95 66-01 Available to backorder	Nut	£4.54 £3.78
506	HV506 98 61-02 Available to backorder	Glidlager	£13.32 £11.10
506	HV506 55 59-01 Available to backorder	Wedge	£4.80 £4.00
506	HV506 66 56-01 Available to backorder	Spring	£14.52 £12.10
506	HV506 83 43-01 Available to backorder	Spring	£3.80 £3.17
506	HV506 93 76-01 Available to backorder	Transmission	£1,423.20 £1,186.00
506	HV506 94 81-01 Available to backorder	Fan	£16.32 £13.60
506	HV506 95 72-01 Available to backorder	Sealing	£19.00 £15.83
506	HV506 56 65-01 Available to backorder	Clip	£0.92 £0.77
506	HV506 67 33-01 Available to backorder	Tank Cap Assy	£40.36 £33.63
506	HV506 88 99-01 Available to backorder	Hitch	£19.40 £16.17
506	HV506 93 89-01 Available to backorder	Lever	£52.62 £43.85
506	HV506 94 82-01 Available to backorder	Washer	£7.51 £6.26
506	HV506 95 75-01 Available to backorder	Washer	£8.40 £7.00
506	HV506 54 25-01 In stock	Spring	£6.96 £5.80
506	HV544 42 73-01 Available to backorder	Styrkrans	£42.26 £35.22
506	HV506 77 34-01 Available to backorder	Washer	£4.04 £3.37
506	HV506 90 61-01 Available to backorder	Connection Rod	£15.54 £12.95
506	HV506 94 69-01 Available to backorder	Pulley	£37.20 £31.00
721	HV721 43 47-01 Available to backorder	Spring Pin	£1.68 £1.40
725	HV725 23 68-51 Available to backorder	Screw	£2.28 £1.90
725	HV725 24 47-71 Available to backorder	Screw Ehhm	£3.24 £2.70
725	HV725 24 55-51 Available to backorder	Screw	£3.62 £3.02
725	HV725 24 67-71 Available to backorder	Screw Ehhm	£6.78 £5.65
725	HV725 23 74-71 Available to backorder	Screw Ehhm	£2.84 £2.37
725	HV725 24 49-51 Available to backorder	Screw	£3.36 £2.80
725	HV725 24 57-51 Available to backorder	Screw	£5.56 £4.63
725	HV725 24 93-71 Available to backorder	Screw Ehhm	£6.94 £5.78
725	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
725	HV725 23 81-51 Available to backorder	Screw Ehhm	£4.54 £3.78
725	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
725	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.34 £5.28
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.24 £2.70
731	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.50 £1.25
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.78 £1.48
732	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
734	HV734 11 52-01 Available to backorder	Washer	£2.34 £1.95
734	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
734	HV734 11 53-41 Available to backorder	Washer	£2.58 £2.15
734	HV734 11 78-01 Available to backorder	Washer	£3.62 £3.02
734	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
735	HV735 31 16-00 Available to backorder	Circlip	£2.92 £2.43
735	HV735 31 38-10 Available to backorder	Circlip	£0.92 £0.77
735	HV735 31 17-00 In stock	Circlip	£0.76 £0.63
735	HV735 31 40-10 Available to backorder	Circlip	£5.82 £4.85
735	HV735 11 64-01 Available to backorder	Spring Washer	£3.62 £3.02
735	HV735 31 26-00 Available to backorder	Circlip	£0.76 £0.63
738	HV738 21 04-04 Available to backorder	Ball Bearing	£8.42 £7.02
738	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
738	HV738 21 05-04 Available to backorder	Ball Bearing	£9.96 £8.30
738	HV738 21 10-04 Available to backorder	Ball Bearing	£9.96 £8.30
740	HV740 48 12-02 Available to backorder	O-Ring	£3.84 £3.20
740	HV740 68 14-21 Available to backorder	V-Ring	£4.96 £4.13
