Husqvarna PR 17 AWD - 44" 112cm Cutting Deck 3

Description

Husqvarna PR 17 AWD

Model Year -

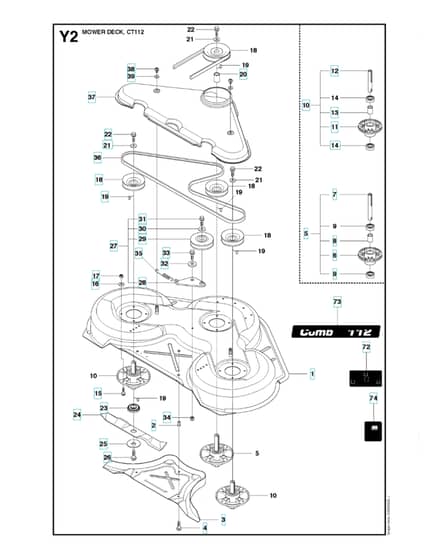

44" 112cm Cutting Deck 3 - Parts Diagram

	Part No.	Details
1	HV504 56 99-01 Available to backorder	Deck Shell Assy	£599.59 £499.66
2	HV506 91 62-01 Available to backorder	Nut	£6.01 £5.01
3	HV544 44 93-01 Available to backorder	Plug	£121.32 £101.10
4	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
5	HV576 89 90-01 Available to backorder	Mandrel (also 10)	£162.24 £135.20
7	HV576 86 58-01 Available to backorder	Shaft	£50.62 £42.18
8	HV535 42 88-01 Available to backorder	Spacer	£8.98 £7.48
9	HV738 22 05-19 Available to backorder	Ball Bearing (also 14)	£9.85 £8.21
11	HV576 38 42-01 Available to backorder	Bearing Housing (also 6)	£73.32 £61.10
12	HV535 42 87-02 Available to backorder	Shaft	£66.84 £55.70
15	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.02 £4.18
16	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
17	HV732 21 18-01 In stock	Lock Nut(also 34)	£2.38 £1.98
18	HV535 42 90-01 Available to backorder	Pulley	£79.32 £66.10
19	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
21	HV535 42 92-01 Available to backorder	Washer	£9.79 £8.16
23	HV535 50 42-01 Available to backorder	Adapter	£19.21 £16.01
24	HV544 10 27-10 Available to backorder	Blade	£45.80 £38.17
25	HV506 79 23-02 In stock	Knife Plate	£14.71 £12.26
27	HV586 96 66-01 Available to backorder	Tensioner Assy (also 28)	£73.80 £61.50
26	HV725 25 42-51 Available to backorder	Screw Ehhm	£8.29 £6.91
29	HV506 53 27-01 Available to backorder	Pulley	£59.06 £49.22
30	HV734 11 64-41 In stock	Washer	£3.25 £2.71
31	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.59 £2.99
32	HV584 28 86-04 Available to backorder	Washer	£3.40 £2.83
33	HV725 24 51-71 Available to backorder	Screw EHHM	£4.50 £3.75
35	HV506 53 31-01 In stock	Spring	£11.87 £9.89
36	HV593 80 64-01 In stock	Spindle Belt	£64.80 £54.00
37	HV544 09 62-01 Available to backorder	Belt Cover	£48.00 £40.00
38	HV506 98 26-01 Available to backorder	Screw	£2.56 £2.13
39	HV506 55 97-01 Available to backorder	Washer	£2.30 £1.92
72	HV506 78 97-01 Available to backorder	Label	£5.09 £4.24
73	HV544 23 81-05 Available to backorder	Label	£3.79 £3.16
74	HV506 92 90-01 In stock	Label	Was £3.12 £2.60 Special Price £2.14 £1.78
