Husqvarna PG 8 XR - 970605803 - Grinding Head Lower

Name: Husqvarna PG 8 XR - 970605803 - Grinding Head Lower
SKU: PG_8_XR_970605803_PG_208_20XR_GRINDING_20HEAD_20LOWER_Original_2
Price: 0.57 GBP
Availability: InStock

Part No. PG_8_XR_970605803_PG_208_20XR_GRINDING_20HEAD_20LOWER_Original_2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna PG 8 XR - 970605803 - Grinding Head Lower

Description

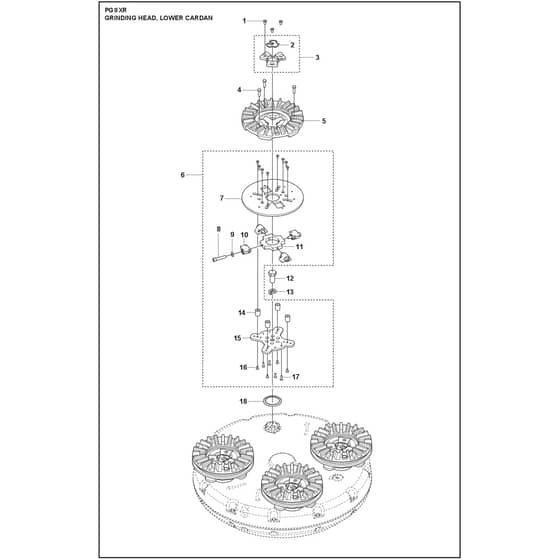

Husqvarna PG 8 XR - 970605803 - Grinding Head Lower - Parts Diagram

	Part No.	Details
1	HV593 49 99-01 Available to backorder	Screw	£2.26 £1.88
3	HV547 11 57-01 Available to backorder	Connection System	£108.96 £90.80
5	HV593 53 61-01 Available to backorder	Holder	£267.96 £223.30
6	HV547 57 32-01 Available to backorder	Holder Assy	£353.88 £294.90
7	HV593 53 99-01 Available to backorder	Plate	£104.76 £87.30
8	HV593 51 26-01 Available to backorder	Screw	£2.14 £1.78
9	HV593 49 91-01 Available to backorder	Washer	£0.68 £0.57
10	HV593 71 81-01 In stock	Kit	Was £82.14 £68.45 Special Price £59.14 £49.28
11	HV593 53 62-01 Available to backorder	Connection	£66.60 £55.50
12	HV504 74 89-01 Available to backorder	Screw Ehhm	£17.72 £14.77
13	HV504 74 96-03 Available to backorder	Lockwasher	£7.72 £6.43
14	HV595 74 84-01 In stock	Absorber	Was £9.17 £7.64 Special Price £6.12 £5.10
18	HV536 98 35-01 Available to backorder	Seal	£11.14 £9.28
