Husqvarna PG 450 - 970755005 - Frame

Name: Husqvarna PG 450 - 970755005 - Frame
SKU: PG_450_970755005_SM_113064-group
Price: 1.07 GBP
Availability: InStock

Part No. PG_450_970755005_SM_113064-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

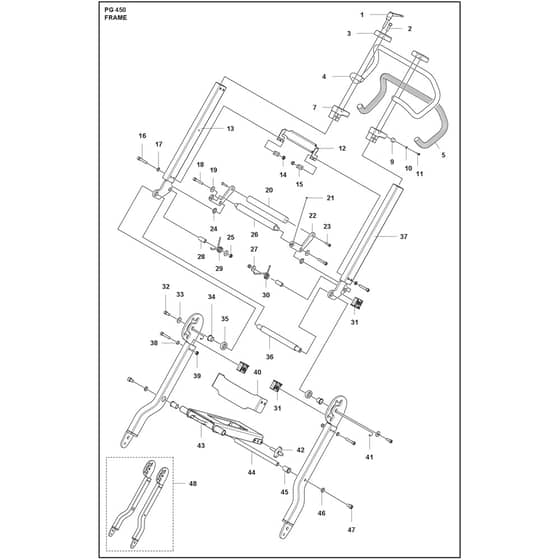

Husqvarna PG 450 - 970755005 - Frame - Parts Diagram

	Part No.	Details
1	HV590 37 37-01 Available to backorder	Locking Handle	£13.92 £11.60
2	HV725 54 55-21 Available to backorder	Screw Ihscm	£2.06 £1.72
3	HV585 51 66-01 Available to backorder	Bracket	£32.08 £26.73
4	HV585 14 40-01 Available to backorder	Handle (Handlebar)	£59.32 £49.43
7	HV585 51 67-01 Available to backorder	Bracket	£56.76 £47.30
9	HV585 51 68-01 Available to backorder	Rubber Shoe	£3.79 £3.16
11	HV725 52 95-01 Available to backorder	Screw Ihscm	£107.04 £89.20
12	HV585 38 28-01 Available to backorder	Bracket	£33.00 £27.50
20	HV585 13 37-01 Available to backorder	Handle	£18.77 £15.64
22	HV585 13 33-01 Available to backorder	Plate	£43.27 £36.06
23	HV725 63 74-51 Available to backorder	Screw	£2.39 £1.99
24	HV585 41 62-01 Available to backorder	Washer	£3.18 £2.65
25	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
26	HV585 13 38-01 Available to backorder	Rod	£22.69 £18.91
29	HV585 41 73-01 Available to backorder	Spring	£5.02 £4.18
30	HV585 41 61-01 Available to backorder	Spring	£5.02 £4.18
31	HV585 13 29-01 Available to backorder	Spacer	£5.60 £4.67
32	HV725 54 51-01 Available to backorder	Screw Ihscm	£2.39 £1.99
33	HV734 11 65-41 Available to backorder	Washer	£3.59 £2.99
34	HV585 41 60-01 Available to backorder	Bush	£5.74 £4.78
35	HV585 13 35-01 Available to backorder	Spacer	£8.17 £6.81
36	HV585 13 36-01 Available to backorder	Tube	£21.80 £18.17
38	HV725 54 60-01 Available to backorder	Screw Ihscm	£6.85 £5.71
39	HV585 38 31-01 Available to backorder	Washer	£3.18 £2.65
40	HV585 38 30-01 Available to backorder	Bracket	£26.94 £22.45
41	HV728 82 85-01 Available to backorder	Screw Ihsetm	£1.28 £1.07
42	HV590 47 22-01 Available to backorder	Wing Knob	£48.89 £40.74
43	HV585 10 97-02 Available to backorder	Support	£229.08 £190.90
44	HV585 12 90-02 Available to backorder	Tube	£17.56 £14.63
45	HV585 12 91-01 Available to backorder	Bush	£6.83 £5.69
46	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
47	HV725 54 91-01 Available to backorder	Screw Ihscm	£1.94 £1.62
48	HV593 89 71-03 Available to backorder	Frame Tube	£326.64 £272.20
