Husqvarna P524XR EFI - 970601701 - Hydraulics 02

Name: Husqvarna P524XR EFI - 970601701 - Hydraulics 02
SKU: P524XR_EFI_970601701_RV_255299_Original_20file-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna P524XR EFI - 970601701 - Hydraulics 02

Description

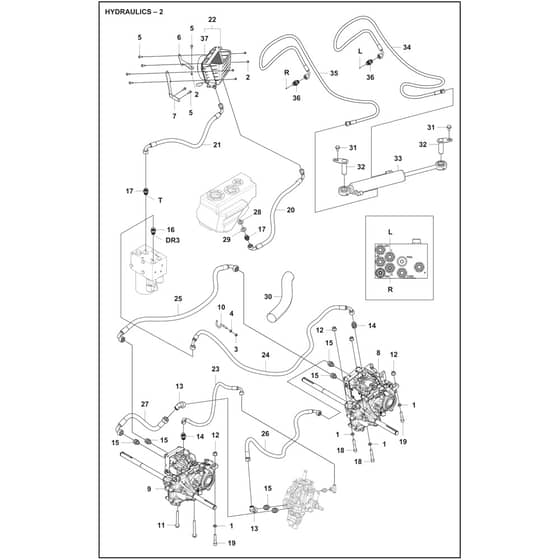

Husqvarna P524XR EFI - 970601701 - Hydraulics - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV734 11 77-71 Available to backorder	Washer	£2.58 £2.15
2	HV732 21 16-01 Available to backorder	Lock Nut (M6)	£1.82 £1.52
3	HV732 21 18-01 Available to backorder	Lock Nut (M8)	£2.40 £2.00
4	HV731 23 18-01 Available to backorder	Hexagon Nut (M8)	£3.24 £2.70
5	HV725 23 68-71 Available to backorder	Screw Ehhm (M6 X 16)	£2.34 £1.95
6	HV593 36 64-01 Available to backorder	Bracket	£11.22 £9.35
7	HV593 36 63-01 Available to backorder	Bracket	£11.78 £9.82
8	HV577 39 49-01 Available to backorder	Transmission (Rear)	£2,012.40 £1,677.00
10	HV577 35 77-01 Available to backorder	Tool Holder	£5.51 £4.59
11	HV576 65 48-10 Available to backorder	Screw Ehhfm (M12 X 100)	£6.46 £5.38
12	HV576 64 57-06 Available to backorder	Nut (M12)	£1.39 £1.16
13	HV575 88 15-02 Available to backorder	Connector	£53.22 £44.35
14	HV575 88 14-02 Available to backorder	Connector	£13.76 £11.47
15	HV575 88 14-01 Available to backorder	Connector	£22.94 £19.12
16	HV575 88 13-04 Available to backorder	Connector	£10.76 £8.97
17	HV575 88 13-03 Available to backorder	Connector	£13.76 £11.47
18	HV544 25 63-03 Available to backorder	Screw Ihscm (M12 X 80)	£2.16 £1.80
19	HV544 25 63-01 Available to backorder	Screw Ihscm (M12 X 60)	£8.28 £6.90
20	HV537 49 30-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
21	HV537 49 29-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
22	HV536 75 82-01 Available to backorder	Oil Cooler (Assy)	£478.31 £398.59
23	HV536 47 51-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
24	HV536 47 50-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
25	HV536 47 48-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
26	HV536 47 47-01 Available to backorder	Hydraulic Hose	£65.26 £54.38
27	HV536 47 46-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
28	HV522 47 13-01 Available to backorder	Washer	£2.34 £1.95
29	HV506 77 57-01 Available to backorder	Washer	£5.68 £4.73
30	HV505 45 38-01 Available to backorder	Hose Guard	£16.25 £13.54
31	HV506 57 01-03 Available to backorder	Screw Ehhfm (M8 X 16)	£5.04 £4.20
32	HV576 28 64-01 Available to backorder	Shaft Assy	£41.26 £34.38
33	HV595 31 96-01 Available to backorder	Hydraulic Cylinder (Steering cylinder)	£341.28 £284.40
34	HV546 30 64-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
35	HV546 30 62-01 Available to backorder	Hydraulic Hose	£56.47 £47.06
36	HV575 88 13-02 Available to backorder	Connector	£11.80 £9.83
37	HV504 62 93-01 Available to backorder	Fan	£247.93 £206.61
