Husqvarna P524XR EFI - 970601701 - Engine

Description

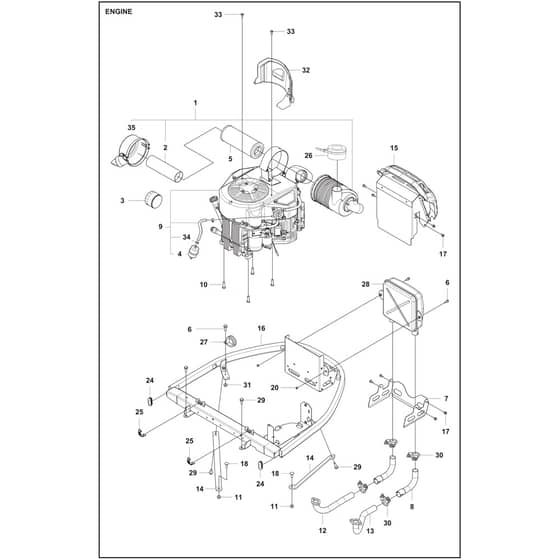

Husqvarna P524XR EFI - 970601701 - Engine - Parts Diagram

	Part No.	Details
1	HV582 09 28-01 Available to backorder	Air Filter Assy (Air filter assy)	£237.24 £197.70
2	HV585 40 80-02 Available to backorder	Prefilter	£61.32 £51.10
3	HV578 15 92-01 In stock	Oil Filter	£26.23 £21.86
4	HV595 92 73-01 Available to backorder	Fuel Filter	£17.62 £14.68
5	HV585 40 80-01 Available to backorder	Air Filter	£52.15 £43.46
6	HV585 98 06-01 Available to backorder	Screw Ehhfm (M6 X 16)	£4.75 £3.96
7	HV593 59 01-01 Available to backorder	Heat Protector	£46.80 £39.00
8	HV590 75 46-01 Available to backorder	Exhaust Pipe	£15.35 £12.79
9	HV590 75 31-01 Available to backorder	Engine (Complete engine)	£1,990.80 £1,659.00
10	HV577 09 48-01 Available to backorder	Screw (3.8-16UNC X 1.25)	£6.40 £5.33
11	HV576 64 57-04 Available to backorder	Nut (M8)	£2.96 £2.47
12	HV536 45 94-02 Available to backorder	Manifold (Right)	£21.26 £17.72
13	HV536 45 94-01 Available to backorder	Manifold (Left)	£21.85 £18.21
14	HV536 45 75-01 Available to backorder	Support	£17.71 £14.76
15	HV536 44 06-01 Available to backorder	Heat Protector	£220.08 £183.40
16	HV536 43 42-02 Available to backorder	Engine Frame	£250.08 £208.40
17	HV535 47 52-12 Available to backorder	Screw Ehhfm (M6 X 12)	£3.59 £2.99
18	HV535 42 38-01 Available to backorder	Screw Rsqm (M8 X 25)	£5.02 £4.18
20	HV731 23 16-01 Available to backorder	Hexagon Nut (M6)	£1.56 £1.30
24	HV504 64 36-01 Available to backorder	Plug	£4.22 £3.52
25	HV588 46 28-03 In stock	Snap Locking	£4.37 £3.64
26	HV546 05 63-01 Available to backorder	Sealing (Without strap)	£42.52 £35.43
27	HV574 53 12-02 Available to backorder	Hose Clamp	£2.69 £2.24
28	HV590 75 38-01 Available to backorder	Muffler Assy	£270.36 £225.30
29	HV506 57 01-05 In stock	Screw Ehhfm (M8 X 25)	£1.06 £0.88
30	HV501 15 22-01 Available to backorder	Clamp Assy	£1.79 £1.49
31	HV576 64 57-03 Available to backorder	Nut (M6)	£2.30 £1.92
32	HV538 96 18-01 Available to backorder	Air Conductor	£57.86 £48.22
33	HV574 85 62-02 Available to backorder	Screw (M6 X 21)	£3.07 £2.56
34	HV535 46 97-01 Available to backorder	Hose Brace	£0.83 £0.69
35	HV579 15 65-01 Available to backorder	Air Cleaner	£41.02 £34.18
