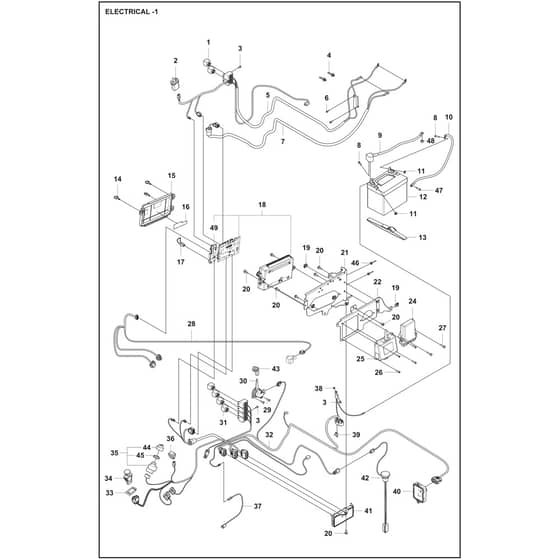

Husqvarna P524XR EFI - 970601701 - Electrical - Parts Diagram

	Part No.	Details
1	HV582 04 96-01 Available to backorder	Relay (Frame lift 30A Up & Down)	£10.06 £8.38
2	HV537 64 55-01 Available to backorder	Switch (Frame lift switch)	£28.97 £24.14
3	HV544 29 13-02 Available to backorder	Screw Itxpanm (M5 X 12)	£1.88 £1.57
4	HV579 31 74-01 Available to backorder	Strap	£1.02 £0.85
5	HV536 94 57-01 Available to backorder	Wiring Assy (Frame lift actuator)	£43.12 £35.93
6	HV526 81 81-01 Available to backorder	Screw Itxscm (M4 X 15)	£0.72 £0.60
7	HV536 48 94-01 Available to backorder	Wiring Assy (Power electronic box.PCBA)	£73.68 £61.40
8	HV522 62 21-01 Available to backorder	Screw Ehhm (M6 X 20)	£2.36 £1.97
9	HV577 20 53-01 Available to backorder	Cable (Battery plus cable)	£42.46 £35.38
10	HV576 18 38-02 Available to backorder	Cable (Battery minus cable)	£12.56 £10.47
11	HV522 62 43-01 Available to backorder	Nut (M6)	£2.71 £2.26
13	HV506 83 68-02 Available to backorder	Drive Belt (Battery belt)	£2.36 £1.97
14	HV597 90 71-01 Available to backorder	Locking Pin	£1.88 £1.57
15	HV597 70 81-01 Available to backorder	Lid (Lid electronic box)	£202.08 £168.40
17	HV598 42 33-01 Available to backorder	Wiring Assy (Jumper IRIS power)	£15.35 £12.79
19	HV535 42 91-01 Available to backorder	Spring Nut (M6 SPRING)	£1.28 £1.07
20	HV574 85 62-02 Available to backorder	Screw (M6 X 21)	£3.07 £2.56
21	HV536 84 79-02 Available to backorder	Bracket	£7.09 £5.91
22	HV536 84 80-01 Available to backorder	Bracket	£33.66 £28.05
24	HV596 02 23-02 Available to backorder	Control Unit (Vehicle control unit)	£414.60 £345.50
25	HV536 75 78-01 Available to backorder	Unit (Remote reciever. including software *(For Japan market update of software is required before use. Contact sales company))	£596.40 £497.00
26	HV725 53 31-01 Available to backorder	Screw Ihscm (M5 X 20)	£0.68 £0.57
27	HV535 47 52-30 Available to backorder	Screw Ehhfm (M6 X 30)	£2.36 £1.97
29	HV725 23 68-71 Available to backorder	Screw Ehhm (M6 X 16)	£2.30 £1.92
30	HV536 70 78-01 Available to backorder	Throttle Control Assy (Throttle control)	£15.64 £13.03
31	HV577 32 51-01 Available to backorder	Relay (12V 30A)	£58.40 £48.67
33	HV544 40 43-01 Available to backorder	Lockwasher	£3.89 £3.24
34	HV597 69 39-01 Available to backorder	Switch (PTO Switch)	£63.72 £53.10
35	HV535 47 49-02 Available to backorder	Key Switch (START key switch assy)	£119.04 £99.20
36	HV593 98 71-01 Available to backorder	Toggle Switch (Light switch)	£45.19 £37.66
37	HV593 08 15-01 Available to backorder	Wiring Assy (Hydraulic temp sensor)	£56.81 £47.34
38	HV732 21 14-01 Available to backorder	Lock Nut (M5)	£1.55 £1.29
40	HV536 75 81-01 Available to backorder	Module (EFI Module)	£139.20 £116.00
41	HV590 56 80-02 Available to backorder	Control Unit (IRIS)	£179.04 £149.20
42	HV536 46 91-02 Available to backorder	Sensor (Fuel sensor with wiring)	£308.64 £257.20
44	HV535 47 60-01 Available to backorder	Ignition Key	£11.10 £9.25
45	HV535 47 61-01 Available to backorder	Nut	£35.88 £29.90
46	HV722 78 29-02 Available to backorder	Blind Rivet	£2.71 £2.26
47	HV506 57 01-03 Available to backorder	Screw Ehhfm (M8 X 16)	£5.02 £4.18
48	HV731 23 18-01 Available to backorder	Hexagon Nut (M8)	£3.22 £2.68
